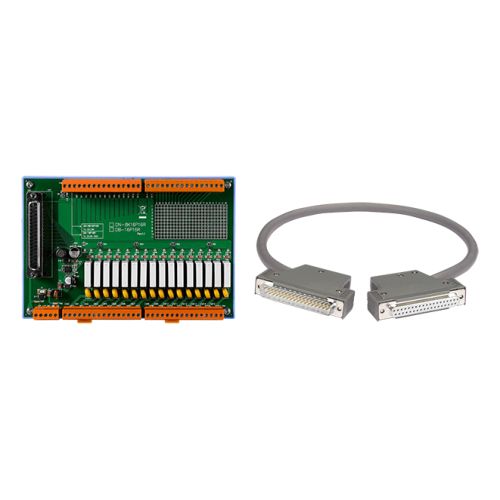

DN-8K16P16R CR, 16-channel DI, 16-channel relay (Form A, 3A) Terminal Board (Pitch= 3.81 mm) with DIN-rail Mounting (RoHS) Include: CA-3705A (DB37 Male to Female Cable, 90º, 0.5 M)
DN-8K16P16R CR
16-channel DI, 16-channel relay (Form A, 3A) Terminal Board (Pitch= 3.81 mm) with DIN-rail Mounting (RoHS) Include: CA-3705A (DB37 Male to Female Cable, 90º, 0.5 M)
features and benefits
- 37-pin D-sub connector to quickly link to a I-8042W or I-87042W
- 16 Form A Signal Relay
- 16 LEDs to display the state of individual relays
- Screw terminals for field wiring
- Power Input: +12 ~ 30 VDC
- DIN-Rail mounting for industrial usage
specifications
| Channels | 16 |
|---|---|
| Type | Pin-to-pin terminals |
| Channels | 16 | |
|---|---|---|
| Contact Rating | Form A: | 3 A @ 250 VAC |
| Operate Time | Form A: 10 ms | |
| Release Time | Form A: 5 ms | |
| Mechanical Endurance | SPST:10,000,000 ops. |
| Input Range | +12 ~ 30 VDC |
|---|---|
| Consumption | 3.75 W Max. |
| Dimensions (mm) | 118 x 174 (W x L) |
|---|---|
| Installation | DIN-Rail mounting |
| Operating Temperature | -25 ~ 75°C |
|---|---|
| Storage Temperature | -30 ~ +85°C |
| Humidity | 10% ~ 90% RH, Non-condensing |
