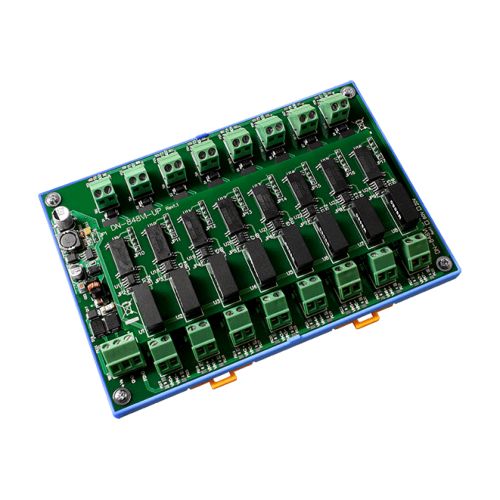

DN-848VI-150V CR ICP DAS Voltage Attenuator

• AC/DC Source Input
• High Voltage Input Measurement
• Linear Attenuation Ratio
• High Input Impedance
• Channel to Channel Isolation for DN-848VI-10V,

• DN-848VI-80V, DN-848VI-150V and DN-843VI-600V
• Channel to Channel Isolation for DN-848VI-10V,

• DN-848VI-80V and DN-848VI-150V
• 4 kV ESD Protection
• 3 kV Surge Protection
• RoHS Compliance
• Operating Temperature: -25 °C ~ +75 °C
• Easily wire connection

The DN-800V series are voltage input attenuator. The maximum input range is from ±80 V to +/- 600 V and can be attenuated to ±10 V. The "I" version provide 3000VDC intra-modules isolation and 3000VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017 and I-87017 etc. to measure the high voltage.

General

Channels: 8
Input Type: AC/DC Voltage
Input Range: +/- 150 Vpp
Output Range: +/- 10 Vpp
Accuracy: 1% of FSR
Chanel to Channel Isolation: Yes, 3000 VDC
Bandwidth: 30 KHz
Input Impedance: > 1 MΩ
Intra-module Isolation, Input to Output: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): +/- 4 kV contact for power line, input and output channels , +/- 8 kV air for random point
Surge (IEC 61000-4-5): +/- 3 kV for power liner

Power Input

Input Range: +10 ~ +24 VDC
Power Consumption: 9.2 W

Mechanical

Dimensions (W x L x H): 122 mm x 174 mm x 33 mm
Installation: DIN-Rail Mounting

Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 10 ~ 90% RH, Non-condensing
