DN-8468YB CR ICP DAS Motion Control Board


DN-8468YB CR

4-axis Stepper/Servo Motion Control Terminal Borad, for Yaskawa Sigma II/III/V Servo Amplifier



€ 252,04

(VAT excluded)

€ 307,49(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 307,49

Availability: 15 business days

SKU: 106326

Model: DN-8468YB CR

Need Help?

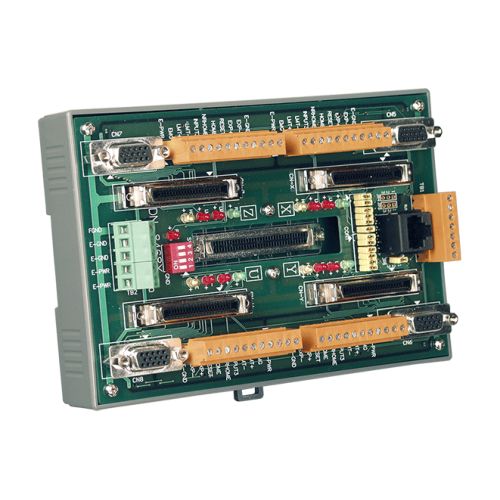

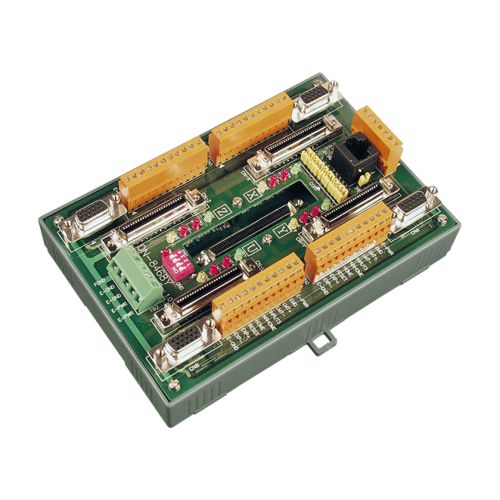

The DN-8468 series is a daughter-board that is designed for ICP DAS’s 4-axis motion controllers, such as I-8094, I-8094F, I-8094A, I-8094H and PISO-PS400. And they are for different motor drivers, such as general purpose usage, Mitsubishi and Panasonic motor amplifier. It is a not only a screw terminal board for easy connection of signals; it also provides onboard isolating circuitry to protect the controllers. Interface signals are divided into four groups. Each group corresponds to a single axis and contains the necessary pulse output command lines, encoder feedback lines, special purpose inputs (Home, near home, limit-switches) and a servo-enable output. Terminal connectors are used for easy wiring purpose. Users can interchange connectors to interchange each axial definition without laborious rewiring. This board also contains onboard power module which provides different voltages for other onboard circuitry. And this power module accepts wide range input power (20 ~ 26 VDC).

  • High Speed Photo-coupling Isolated
  • Supporting Pulse Command Type Step Motors or Servo Motors
  • Providing Power LED and Other Status LEDs (Home, Limit, Switches, ...)
  • Providing FRnet Terminal for High-speed Serial I/O Expansion when the Controller Supports FRnet.



Nominal Load: 0.5 A / 24 VDC
Input Power: 20 ~ 26 VDC, 0.5 A
Power Consumption:  12 W (24 VDC)

Dimensions: 162 mm x 107 mm

Operating Temp: -20 ~ +75°C
Storage Temp: -30 ~ +85 ℃
Operating Humidity: 20 ~ 80% RH, Non-condensing

Storage Humidity: 10 ~ 90% RH, Non-condensing
