DN-843V-600V

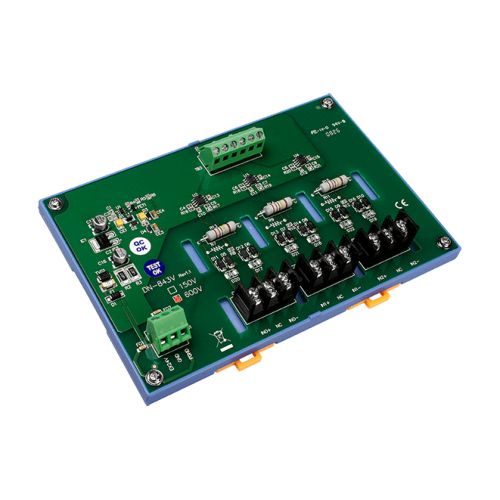

3-channel 600 VDC Voltage Attenuator with non-isolation
- AC/DC Source Input
- Linear Attenuation Ratio
- High Input Impedance
- 4 kV ESD Protection
- RoHS Compliance
- A Wide Range of Operating Temperature: -25 °C ~ +75 °C
- Easily wire connection
The DN-800V series are voltage input attenuator. The maximum input range is from ±80 V to +/- 600 V and can be attenuated to ±10 V. The "I" version provide 3000VDC intra-modules isolation and 3000VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017 and I-87017 etc. to measure the high voltage.
The DN-843V-600V is a voltage input attenuator. The maximum input range is ±600 V and will be attenuated to ±10 V. It can be used with the analog input modules such as I-7017R and I-87017R etc. to monitor or measure the high voltage.
General
Channels: 3
Input Type: AC/DC Voltage
Output Type: AC/DC Voltage
Transformation Rate: ±600 Vpp to ±10 Vpp (600 V Level)
Voltage Unit: Peak to Peak Value
Max. Input Frequency: 100 kHz
Input Impedance: > 1 Mohm
Accuracy of Max. Voltage output: ≦1%
ESD Protection: 4 kV, contact for each terminal
Power
Input Voltage Range: +10 ~ +24 VDC (Non-isolation)
Power consumption: 0.56W Max
Mechanical
Dimensions (W x L x H): 122 mm x 174 mm x 24.5 mm
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 °C ~ 75 °C
Storage Temperature: -30 °C ~ 75 °C
Humidity: 5% ~ 95% RH, Non-condensing
