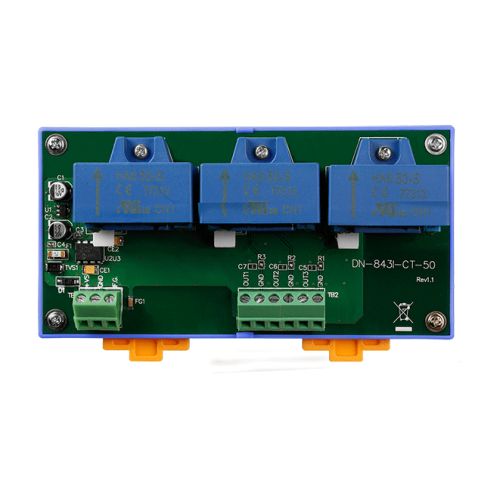

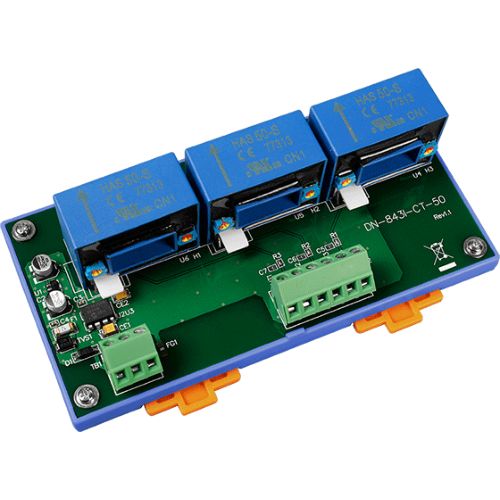

DN-843I-CT-50 CR ICP DAS Current Transformer

• AC/DC Source Input
• Linear Attenuation Ratio
• High Current Input Measurement
• Isolation Input
• Channel to Channel Isolation
• 4 kV ESD Protection
• RoHS Compliance
• Operating Temperature: -25 ~ +75°C
• Easily Wire Connection

The maximum input range is from ±1 A to +/- 50 A and can be attenuated to from ±1.6 V to ±10 V. The "I" version provide 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017 and I-87017 etc. to measure the high current.

General

Channel: 3
Input Type: AC/DC Current
Input Range: +/- 50 A
Output Type: AC/DC Voltage
Output Range +/- 4 Vpp
CT Type: Solid Core (closed)
Accuracy: 1% of FSR
Chanel to Channel Isolation: Yes, 3000 Vrms
Intra-module Isolation, Input to Output: 3000 VDC
Bandwidth: 50 KHz
Input Impedance: > 1 MΩ

EMS Protection

ESD (IEC 61000-4-2): +/- 4 kV contact for power line, input and output channels, +/- 8 kV air for random point

Power Input

Input Range: +10 ~ +24 VDC
Power Consumption: 1.2 W

Mechanical

Dimensions (W x L x H): 148 mm x 83 mm x 39 mm
Installation: DIN-Rail Mounting

Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 10 ~ 90% RH, Non-condensing.
