DN-8368UB CR ICP DAS Motion Control Board


DN-8368UB CR

3-axis Stepper/Servo Motion Control Terminal Borad, for Universal Snap-on Wiring Purpose



€ 241,51

(VAT excluded)

€ 294,64(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 294,64

Availability: 15 business days

SKU: 106327

Model: DN-8368UB CR

Need Help?

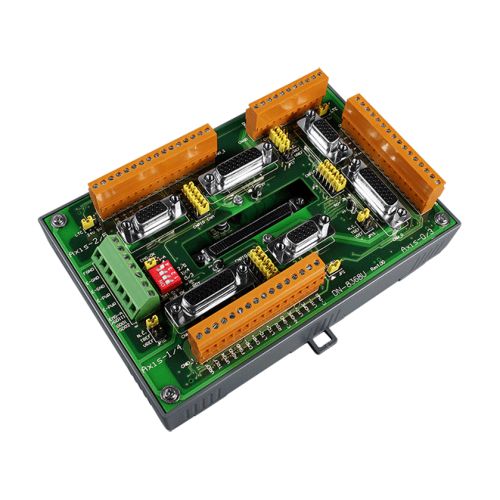

The DN-8368 series is a daughter-board that is designed for ICP DAS’s 6-axis motion controllers, such as PISO-PS600, PISO-VS600 and PMDK. Each DN-8368xB supports 3-axis and two DN-8368xB are required to support 6-axis. The DN-8368GB is designed for general purpose usage while the DN-8368MB is designed to be easily connected with Mitsubishi MINAS-J2S series servo amplifier. It is not only a screw terminal board for easy connection of signals; it also provides on-board isolating circuitry to protect the controllers. Interface signals are divided into three groups. Each group corresponds to a single axis and contains the necessary pulse output command lines, encoder feedback lines, mechanical switch inputs (Home, near home, limit -switches) and some servo input/output interfaces (Srv_On, ERC, ALM_RST, RDY, Alarm, INP). Terminal connectors are used for easy wiring purpose. Users can interchange connectors to interchange each axial definition without laborious rewiring. This board also contains on-board power module which provides different voltages for other on-board circuitry.

  • High Speed Photo-coupling Isolated
  • Supporting Pulse Command Type Step Motors or Servo Motors
  • Providing Power LED and Other Status LEDs (Home, Limit, Switches, ...)



Nominal Load: 0.5 A / 24 VDC
Input Power: 20 ~ 26 VDC, 0.5 A
Power Consumption:  12 W (24 VDC)

Dimensions: 162 mm x 107 mm

Operating Temp: -20 ~ +75°C
Storage Temp: -30 ~ +85 ℃
Operating Humidity: 20 ~ 80% RH, Non-condensing

Storage Humidity: 10 ~ 90% RH, Non-condensing
