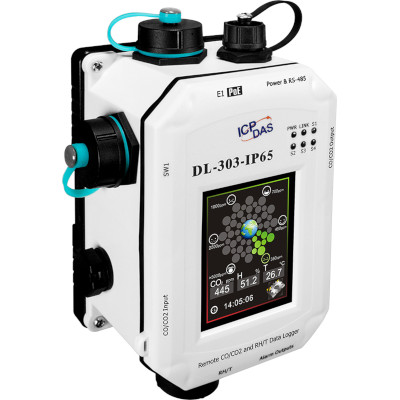

DL-303-IP65 CR ICP DAS Data Logger



DL-303-IP65 CR

IP65 Remote CO/CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE)



€ 662,07

(VAT excluded)

€ 807,73(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 807,73

Availability: 15 business days

SKU: 110956

Model: DL-303-IP65 CR

Need Help?

  • Simultaneous Display for CO, CO2, Temperature, Humidity and Dew Point
  • Measurement Range
    •  CO: 0 ~ 1000 ppm
    •  CO2: 0 ~ 9999 ppm
  • Non-dispersive Infrared (NDIR) CO2 Sensor
  • 2.8" LCD Touch Screen
  • Able to store up to 450,000 records with date and time stamps
  • Touch-screen and Web-based Configuration Interface
  • Free Software Utility, iOS APP and Android App Included
  • Able to Display Multilingual Messages on the Screen
  • Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Includes RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Audible/Visual Alarm or IAQ Device Control
  • IP 65 Protection Approval


The DL-300 series of Data Logger devices can be used to record CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records.
Real-time data can be accessed from the DL-300 Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger.
Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT(Internet of Things) connectivity protocol - MQTT. The DL-300 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.


Mushroom Farm
Mushroom growth yield requires long time to monitor the environment of CO2 concentration, temperature and humidity values, and its growth environment is high humidity condition. The general equipment cannot work in such environment, but the DL-302-IP65 can be used to record CO2, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20°C to +50°C, and are able to store up to 450,000 downloadable records . The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and fl exible. This does not require programming, only some simple settings will be able to achieve the farm production control and quality control, production resume ... and so on.


CO Measurement

Range: 0 to 1000 ppm (Electrochemical)
Resolution: 1 ppm
Accuracy: ±5% of measured value
Response Time: 30 seconds
Warm-up Time: 300 seconds

CO2 Measurement
Range: 0 to 9999 ppm (NDIR)
Resolution: 1 ppm
Accuracy: ±70 ppm ±5% of measured value
Response Time: 120 sec
Warm-up Time: 60 sec
Temperature Measurement
Range: -10 to +50°C
Resolution: 0.1°C
Accuracy: ±0.6°C
Relative Humidity Measurement
Range: 0 to 100% RH, Non-condensing
Resolution: 0.1% RH, Non-condensing
Accuracy: ±5% RH, Non-condensing
Dew Point
Range: Calculated using temperature and relative humidity
Resolution: 0.1°C
CO Alarm: Yes
CO2 Alarm: Yes
Real-time Clock: Yes
Data Logger: Yes, 450,000 Records
Relay Output: Form A×1, SPST
         30 VDC @ 16 A or 250 VAC @ 16 A
Interface: RS-485/Ethernet/PoE
Main Machine Interface
LCD:  2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3
Backlight Life: 20,000 hours
Brightness: 160 cd/m2
Touch Panel: Yes
Powered from Terminal Block: +12 to +48 VDC
Powered from PoE: IEEE 802.3af, Class 1 (48 V)
Power Consumption PoE: 2.83 W (Max.)
                 Non-PoE: 2.24 W (Max.)
Dimensions (L x W x H): 170 mm x 117 mm x 60 mm
Installation: DIN-Rail or Wall Mounting
Operating Temperature: 0 to +50°C
Storage Temperature: -30 to +75°C
Humidity: 10 to 90% RH, Non-condensing
Protection Class: IP65
