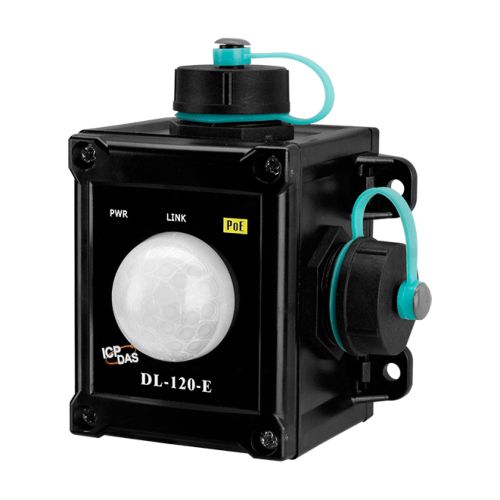

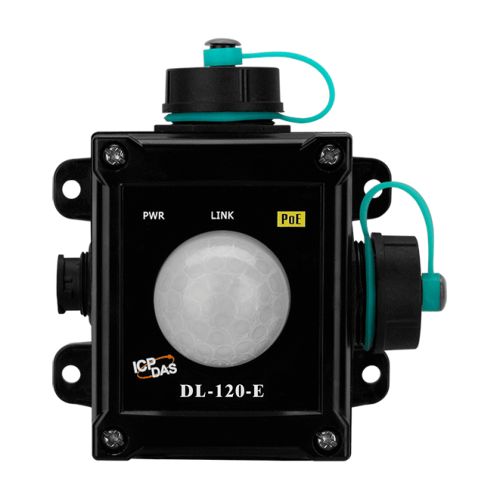

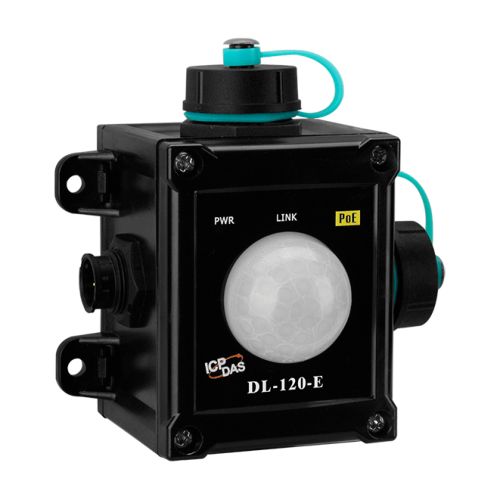

DL-120-E CR ICP DAS Data Logger



DL-120-E CR

IP67 Remote Illuminance Data Logger Module, Using DCON, Modbus RTU, Modbus TCP and MQTT Protocols (Black Cover)



€ 215,92

(VAT excluded)

€ 263,42(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 263,42

Availability: 15 business days

SKU: 118616

Model: DL-120-E CR

Need Help?


  • Illumination Measurement Range: 0 to 100,000 Lux
  • Temperature Measurement Range: -20 to +60°C
  • Humidity Measurement Range: 0 to 100% RH
  • Able to store up to 600,000 records with date and time stamps Free Software Utility, iOS APP and Android App Included
  • Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Includes RS-485/Ethernet Communication Interfaces
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Supports Web Confi guration and Firmware Update via Ethernet
  • IP67 Protection Approval
  • DIN-Rail or Wall Mounting


The DL-120-E are Data Logger devices that can be used to record illumination, temperature, humidity and dew point data, together with date and time stamp information. Up to 600,000 downloadable records can be stored. Real-time data can be accessed from the DL-120-E device from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. The DL-120-E supports popular industrial protocols such as DCON, Modbus RTU, Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-120-E Data Logger can be connected using a variety of communication interfaces, including Ethernet and RS-485, meaning that the device can be easily integrated into existing HMI or SCADA systems, and are easy to maintain in a distributed control system.



Built-in Web Server: Yes

CPU Module

Real Time Clock: Yes
Watchdog Timer: Yes, Module (2.3 seconds), Communication

LED Indicators

Status: PWR: System indicator (Green)
Link: Link/Act indicator (Green)
PoE: PoE indicator (Red)

Illuminance Measurement

Range: 0 to 100,000 Lux
Resolution: 1 Lux
Accuracy: ±5%


Security: IP filter (whitelist) and Password (web)
Data Logger: Yes, 600,000 Records


Ports: 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating,
PoE: IEEE 802.3af, Class 1 (require a PoE switch or injector)
Protocol: Modbus TCP and MQTT


Consumption: PoE: 1.2 W Max.
Non-PoE: 1.1 W Max.
Powered from PoE: IEEE 802.3af, Class 1 (require a PoE switch or injector)
Powered from Terminal Block: +12 ~ +48 VDC


Dimensions (mm): 100 x 112 x 67 (W x L x H)
Installation: DIN-Rail or Wall mounted
Ingress Protection Rating: IP67


Operating Temperature: -20 ~ +60°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 95% RH, Non-condensing
