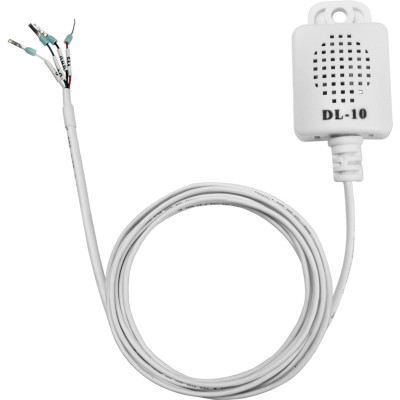

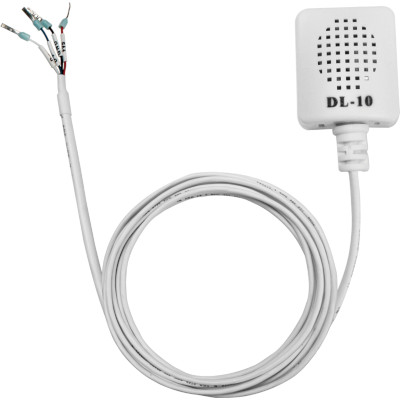

DL-10 CR ICP DAS IO Sensor

• Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
• Accuracy:
  •  +/-0.4°C; +/-3.0% RH for non-P verison
  •  +/-0.3°C; +/-1.8% RH for P version
• LCD Display Shows Temperature, Humidity and Module ID
• 10 ~ 30 VDC Power Input
• IP66 Waterproof
• Data Logger Can Store Up to 4088 Temperature and Humidity Records
• RS-485 Communication interface
• DCON or Modbus RTU Protocol
• Windows Software Included

specifications

Temperature Sensor
Measuring Range: -20 ~ +60°C (-4 ~ +140°F)
Resolution: 0.1°C
Accuracy: Typical: ±0.4°C; refer to figure 2
Precision: +/- 0.1°C

Humidity Sensor
Measuring Range: 10 ~ 95% RH
Resolution: 0.1% RH
Accuracy: Typical: ±3% RH @ 20 ~ 80% RH; refer to figure 1
Precision: +/- 0.1% RH

LCD Display
Displayed Information: -

Data Logger
Time Interval: -
Max. Records: -
Mode: -
Overwrite Limitation: -

Communication
Interface: RS-485; non-isolated
Baudrate: 1200 ~ 115200 bps
Data format: N,8,1
Protocol: Modbus RTU
Max. Modules on same bus: 32

Power
Input Range: +10 ~ +30 VDC
Power Consumption: 0.05 W

Mechanical
Dimensions (W x L x H): 25 mm X 20.2 mm X 30 mm
Waterproof Level: -
Installation: Magnetic mount; Wall mount

Environment
Operating Temperature: -20 ~ +60°C
Storage Temperature: -30 ~ +80°C
Ambient Relative Humidity: 10 ~ 95% RH, Non-condensing
