DL-1050 CR ICP DAS Data Logger

DL-1050 CR ICP DAS

DL-1050 CR ICP DAS

DL-1050 CR

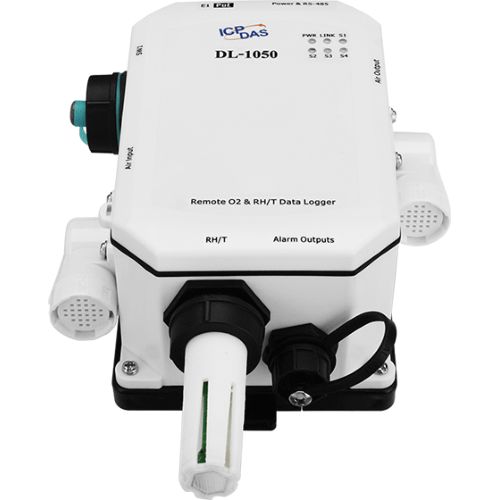

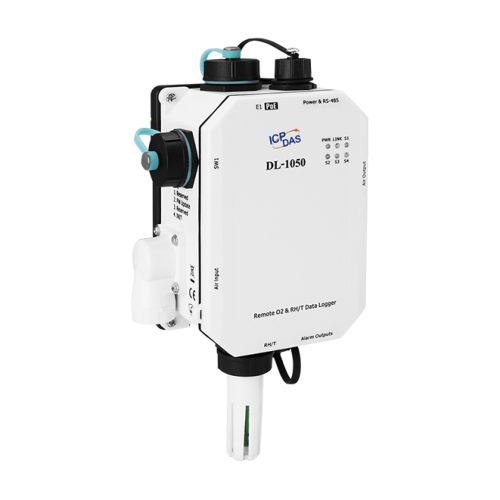

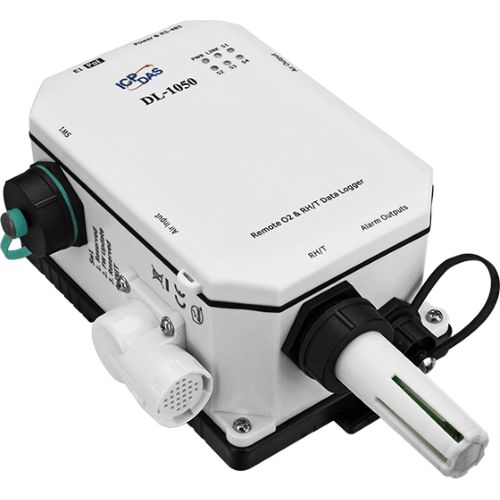

Remote O2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 and PoE

Quantity:

Price

€ 781,70

(VAT excluded)

€ 953,67(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 953,67

Availability: 15 business days

SKU: 118931

Model: DL-1050 CR

Need Help?


 Features

  • Able to record O2, Temperature, Humidity, and Dew Point Measurements
  • Up to 180,000 records with date and time stamps
  • Web-based Configuration Interface
  • Simple and Powerful Software Utility, iOS APP and Android App Included
  • Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
  • Includes RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Audible/Visual Alarm or IAQ Device Control
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • IP 43 Protection Approval

Introduction

The DL-1050 is a series of O2 and gas measurement module that measures oxygen gas (O2) in air. In addition, various fume concentrations related to human health can also be measured. For example: CO/CO2/HCHO/NH3/H2S/TVOC DL-1000 can record data and send alarm when concentration is too high. It can be used to record O2, CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Point information, including date and time stamps, and are able to store up to 180,000downloadable records. Real-time data can be accessed from the DL-1000 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol-MQTT. The DL-1000 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The DL-1000 series is designed for industrial applications in harsh environments that provides IP43 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.


Specifications

CPU Module

Real Time Clock: Yes
Watchdog Timer: Yes, Module (2.3 sec), Communication (Programmable)


LED Indicators

Status: "PWR: Green for normal operation
Link: Green for the Ethernet-linked
S1 ~ S4: Red for an alarm condition"


Temperature Measurement

Range: -20 ~ +50°C
Resolution: 0.1°C
Accuracy: ±0.6°C
Re-calibratable: No
Offset Programmable: Yes
Replaceable (RMA): Yes


Humidity Measurement

Range: 0 to 100% RH, Non-condensing
Resolution: 0.1% RH, Non-condensing
Accuracy: ±5% RH, Non-condensing
Life Time: 10 years
Re-calibratable: No
Offset Programmable: Yes
Replaceable (RMA): Yes


Dew Point

Range: Calculated using temperature and relative humidity
Resolution: 0.1°C


O2 Measurement

Range: 0~25%
Resolution: 0.01%
Accuracy: 2% of FSR
Response Time: < 30 secs (typical)
Warm-up Time: 120 seconds
Life Time: > 5 years
Re-calibratable: No
Offset Programmable: Yes
Replaceable (RMA): Yes


System

Security: IP filter (whitelist) and Password (web)
Alarm: O2/RH/Temperature/ Real Time Clock
Real Time Clock: Yes
Data Logger: Yes, up to 180,000 records
Relay Output: PhotoMOS Relay, Form A x4, SPST
100 VDC @ 1 A


COM Ports

Baud Rate: 1200 ~ 115200 bps
Protocol: Modbus/RTU(RS-485), Modbus TCP(Ethernet) and MQTT(Ethernet)
Ethernet:
Ports: 10/100 Base-TX, 8-Pin RJ-45 x1(Auto-negotiating, Auto-MDI/MDIX, LED indicators)


Power

Consumption: "PoE: 2.4 W (Max.)
Non-PoE: 2.3 W (Max.)
Powered from PoE: IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block: +12 ~+48 VDC


Mechanical

Dimensions (mm): 130 x 210 x 70 (W x L x H)
Installation: DIN-Rail or Wall Mounting
Ingress Protection Rating: IP43


Environment

Operating Temperature: -20 ~ +50°C
Storage Temperature: -30 ~ +75°C
Humidity: 10 ~ 90% RH, Non-condensing
