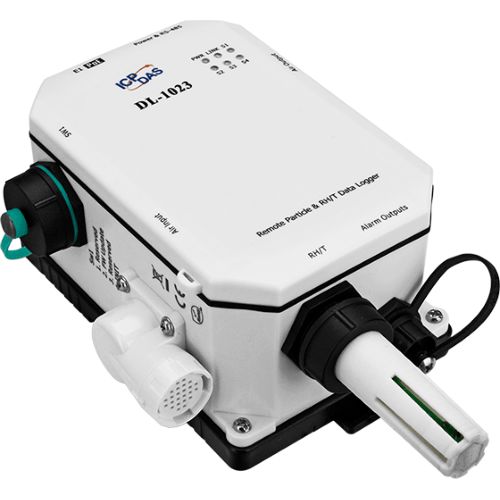

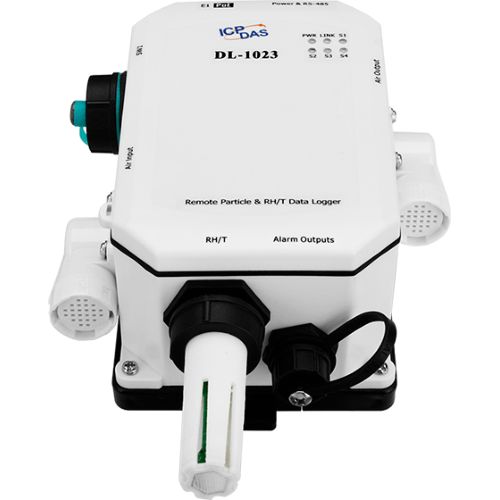

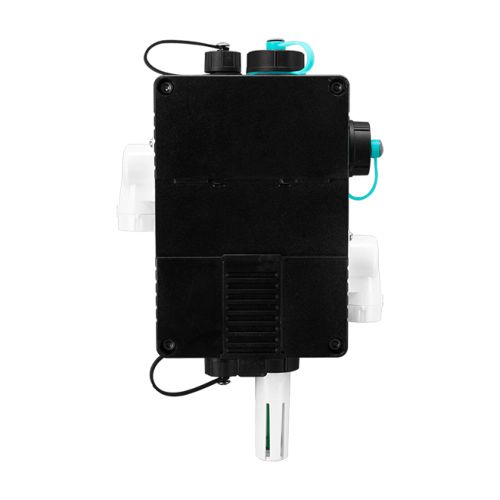

DL-1023 CR ICP DAS Data Logger



The DL-1000 is a series of particle and gas measurement module that can measure the concentration of aerosols in the air, such as: PM2.5, PM1, PM10 and the number of particles (0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm). In addition, various fume concentrations related to human health can also be measured. For example: CO/CO2/HCHO/NH3/H2S/TVOC DL-1000 can record data and send alarm when concentration is too high. It can be used to record PM1/2.5/10, CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 180,000downloadable records. Real-time data can be accessed from the DL-1000 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol-MQTT. The DL-1000 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The DL-1000 series is designed for industrial applications in harsh environments that provides IP43 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.



Real Time Clock: Yes

Watchdog Timer: Yes, Module (2.3 sec), Communication (Programmable)



Status: PWR: Green for normal operation

Link: Green for the Ethernet-linked

S1 ~ S4: Red for an alarm condition



Range: -20 ~ +50°C

Resolution: 0.1°C

Accuracy: ±0.6°C



Range: 0 ~ 100% RH

Resolution: 0.1% RH

Accuracy: ±5% RH

Life Time: 10 years



Range: Calculated using temperature and relative humidity

Resolution: 0.1°C



Range: 0 ~ 1000 ppm (Electrochemical)

Resolution: 1 ppm

Accuracy: ±5% of measured value

Response Time: 30 seconds

Warm-up Time: 60 seconds

Life Time: 5 years



Range: 0 ~ 9999 ppm (NDIR)

Resolution: 1 ppm

Accuracy: ±30 ppm ±3% of measured value

Response Time: 120 seconds

Warm-up Time: 300 seconds

Life Time: 15 years



Range: 0 to 1,000μg/m3 ( Laser Type)

Resolution: 1μg/m3

Accuracy: ± 10% of FSR.

Response Time: 1 sec

Warm-up Time: 20 sec

Life Time: 5 years, Customer has to replace the filter patch.



Sizes: 0.3μm, 0.5μm,,1μm, 2.5μm,,5μm, 10μm



Security: IP filter (whitelist) and Password (web)

Alarm: PM1/PM2.5/PM10

/RH/Temperature/ Real Time Clock

Real Time Clock: Yes

Data Logger: Yes, up to 180,000 records

Relay Output: PhotoMOS Relay, Form A x4, SPST

100 VDC @ 1 A



Baud Rate: 1200 ~ 115200 bps

Protocol: Modbus/RTU(RS-485), Modbus TCP(Ethernet) and MQTT(Ethernet)



Ports: 10/100 Base-TX, 8-Pin RJ-45 x1(Auto-negotiating, Auto-MDI/MDIX, LED indicators)



Consumption: PoE: 3.2 W (Max.)

Non-PoE: 2.8 W (Max.)

Powered from PoE: IEEE 802.3af, Class 1 (48 V)

Powered from Terminal Block: +12 ~+48 VDC



Dimensions (mm): 130 x 210 x 70 (W x L x H)

Installation: DIN-Rail or Wall Mounting

Ingress Protection Rating: IP43



Operating Temperature: -20 ~ +50°C

Storage Temperature: -30 ~ +75°C

Humidity: 10 ~ 90% RH, Non-condensing
