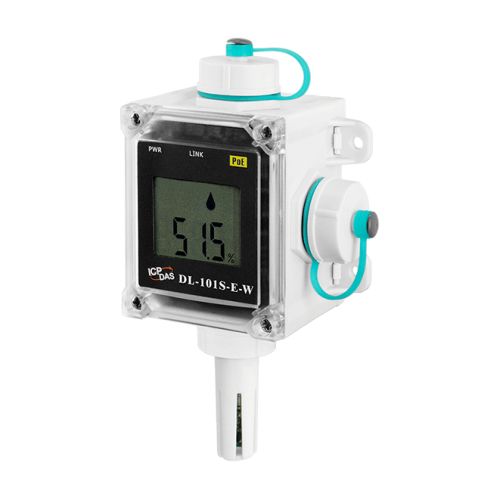

DL-101S-E-W CR, IP66 Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm, Using Modbus TCP and MQTT Protocols (White Cover)
DL-101S-E-W CR
IP66 Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm, Using Modbus TCP and MQTT Protocols (White Cover)
Free Shipping
Features
- Measurement Range: -20 to +60°C and 0 to 100% RH
- LCD Display Shows Temperature, Relative Humidity, Date and Time
- Able to store up to 600,000 records with date and time stamps
- Free Software Utility, iOS APP and Android App Included
- Supports the Modbus TCP and MQTT Protocols
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input (DL-101S-E and DL-101S-E-W Only)
- PhotoMOS Relay Output for Alarm Devices or IAQ Device Control (DL-101S-E and DL-101S-E-W Only)
- Supports Web Confi guration and Firmware Update via Ethernet
- IP66 Protection Approval
- DIN-Rail or Wall Mounted
Introduction
The DL-100S-E/DL-101S-E series of Data Logger devices can be used to record temperature, humidity and dew point information, including the date and time stamps for each record, with up to 600,000 downloadable records able to be stored. Real-time data can be accessed from the DL-100S-E/DL-101S-E Data Logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as it is connected to the same local network as the Data Logger. The DL-100S-E/DL-101S-E Data Logger supports popular industrial protocols such as Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-100S-E/DL-101S-E Data Logger can be connected using a range of communication interfaces including Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring easy maintenance in a distributed control system.
Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Museums, archives, galleries
- Warehouses
Specifications
CPU Module
Real Time Clock: Yes
Watchdog Timer: Yes, Module, Communication (Programmable)
System
Display
LCD Information Displayed: Temperature (°C and °F), Humidity (RH), Relative Humidity, Date and Time
LED Indicators
Status: PWR: System indicator (Green)
Link: Link/Act indicator (Green)
PoE: PoE indicator (Red)
Temperature Measurement
Range: -20 ~ +60°C (-31 to +176˚F)
Resolution: 0.1°C
Accuracy: ±0.4°C
Humidity Measurement
Range: 0 ~ 100% RH
Resolution: 0.1% RH
Accuracy: ±3% RH @ 20 to 80% RH
System
Security: IP filter (whitelist) and Password (web)
Data Logger: Yes, 600,000 Records
Relay Output: PhotoMOS Relay, Form Ax2, SPST
100 VDC @ 1 A
Ethernet
Ports: 10/100 Base-TX with Auto MDI/MDI-X
PoE: Yes, (IEEE 802.3af, Class 1)
Protocol: Modbus TCP, MQTT
Power
Consumption: PoE: 0.7 W Max.
Non-PoE: 0.6 W Max.
Powered from PoE: IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block: +12 ~ +48 VDC
Mechanical
Dimensions (mm): 100 x 157 x 56 (W x L x H)
Installation: DIN-Rail; Wall mounted
Ingress Protection Rating: IP66
Environment
Operating Temperature: -20 ~ +60°C
Storage Temperature: -30 ~ +80°C
Humidity: 5 ~ 95% RH, Non-condensing
