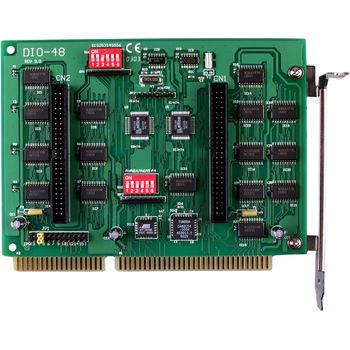

DIO-48 CR
ISA Bus, 48-ch Digital I/O Board
- Connects directly to DB-24P,DB-24R,DB-24PR,DB-885B ,or any OPTO-22 compatible daughter board
- 48 digital I/O lines
- One 16-bit counter
- IRQ Level: IRQ3 ~ IRQ15
- Interrupt Trigger by Event / Timer / Port C3 , C7
- Clock Source can be setting: RTC (32.768 k)/2 M/4 M/8 MHz
- Emulate two industrial-standard 8255 mode 0
- Two 50-pin flat cable connector
- Output status read back
The DIO-48 provides 48 TTL digital I/O lines, and one 16- bit counter . The DIO-48 emulates 8255 mode 0 and has an increased output current of 15 mA (source) and 64 mA (sink) , allowing it to control LED, relay, etc. The DIO-48 consists of six 8-bit bi-directional ports and 3 input lines for interrupt enable and counter. The 8-bit ports are named port A(PA),port B(PB) and port C(PC). The port C can be split into two four bit. All ports are configured as inputs as inputs upon power-up or reset. The base address is selectable from 200 to 3FF hex. The interrupt signal can be connected to any of the interrupt levels 2 through 7.
Digital Input
Channels: 48 (OPTO-22 compatible)
Compatibility: 5 V/TTL
Input Voltage:
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed: 1.0 MHz (Typical)
Digital Output
Channels: 48 (OPTO-22 compatible)
Compatibility: 5 V/TTL
Output Voltage:
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V
Response Spee: 1.0 MHz (Typical)
Timer/Counter
Channels: 3 independent
Resolution: 16-bit
Input Frequency: 10 MHz max.
Clock Source: 32.768 kHz/2 MHz/4 MHz
General
Bus Type: ISA
I/O Connector: 50-pin box header x 2
Dimensions (L x W x D): 159 mm x 120 mm x 22 mm
Power Consumption: 900 mA @ +5 V
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
