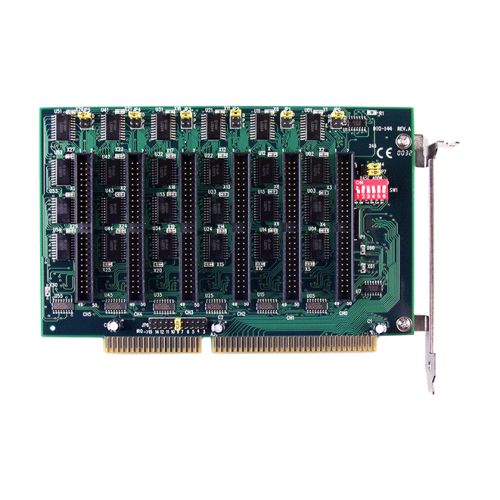

DIO-144 CR
ISA Bus, 144-ch Digital I/O Board
- Double side SMT , short card, power saving
- DIO-144: 144 digital I/O lines
- DIO-96: 96 digital I/O lines
- Emulate 8255 mode 0 (Basic Input / Output mode)
- Buffer output for higher driving capability than 8255
- Register compatible to 722 series
- Programmable interrupt handling
- DIO-144: Six 50-pin Header
- DIO-96: Four 50-pin Header
- Output status readback
The DIO-144/96 provides 144/96 TTL digital I/O lines. The DIO-144/96 emulates 8255 mode 0 and has an increased output current of 15 mA (source) and 64 mA (sink) , allowing it to control LED, relay, etc. The DIO-144/96 consists of eighteen 8 bit bi-directional ports and 2 input lines for interrupt enable and interrupt. The 8 bit ports are named port A(PA),port B(PB) and port C(PC). The port C can be split into two four bit. All port are configured as inputs upon power-up or reset. The DIO-144/96 uses 4 consecutive I/O locations in I/O addressing space. The base address is selectable from 200 to 3FF hex. The interrupt signal can be connected to any of the interrupt levels 2 through 15.
Digital Input
Channels: 144 (OPTO-22 compatible)
Compatibility: 5 V/TTL
Input Voltage:
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed: 1.0 MHz (Typical)
Digital Output
Channels: 144 (OPTO-22 compatible)
Compatibility: 5 V/TTL
Output Voltage:
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability:
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V
Response Speed: 1.0 MHz (Typical)
General
Bus Type: ISA
I/O Connector: 50-pin box header x 6
Dimensions (L x W x D): 182 mm x 120 mm x 22 mm
Power Consumption: 700 mA @ +5 V
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
