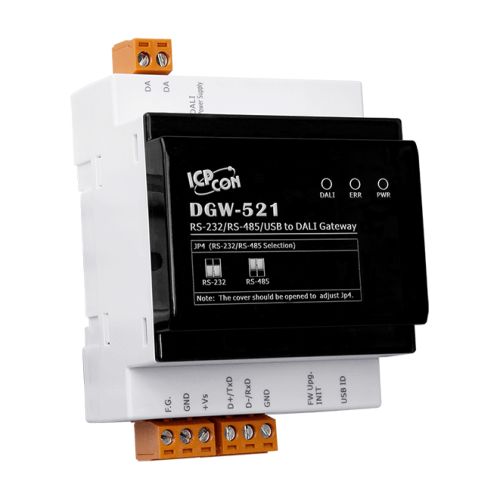

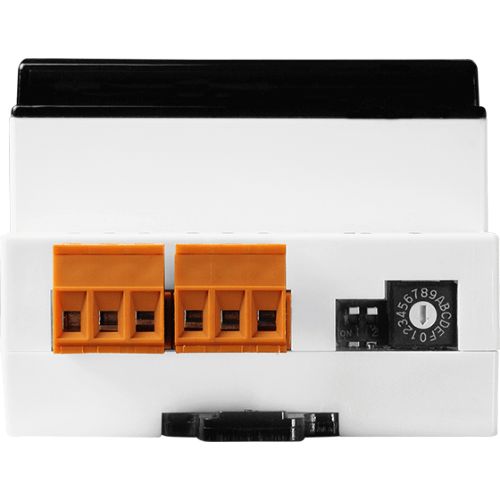

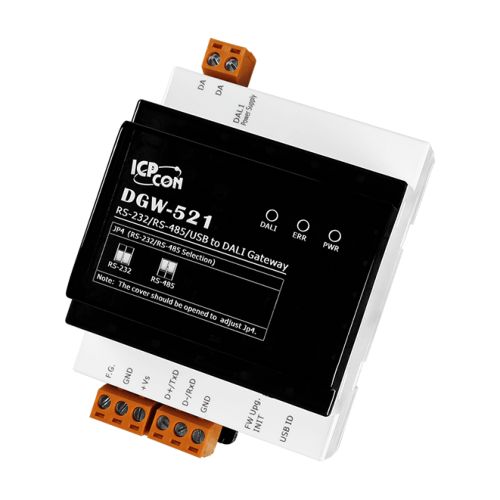

DGW-521 CR
RS-232/RS-485/USB to DALI Digital Addressable Lighting Interface Gateway. Communicable over Modbus RTU Protocol. Supports operating temperatures from -25°C ~ +75°C
The DGW-521 is a communication gateway between the Modbus RTU/DCON and the DALI (Digital Addressable Lighting Interface) protocols, and allows a Host PC, PAC, or TouchPAD to access DALI devices by providing three interfaces that enable conversion from RS-232/RS-485/USB to DALI. The module provides a built-in DALI power supply that can be enabled or disabled via a switch. DALI is an international standard for lighting control interfaces, and is suitable for DALI lighting systems covering small areas. The maximum length of the DALI signal cables cannot exceed 300 m.
- Conversion between RS-485/RS-232/USB and DALI Interfaces
- Simplified Wiring Process
- Built-in DALI Power can be enabled or disabled using a Switch
- +/- 4 kV EFT Protection and +/-2 kV Surge Protection for the Power Line
- +/- 4 ESD Protection for the RS232/485/USB Data Line
- 1500 Vdc Isolation
- DIN-Rail Mounting
- Wide Operating Temperature Range: -25°C ~ +75°C
Interface
DALI
- Connector: 2-pin Terminal Block
- Baud Rate (bps): 1200
- Isolation: 1500 Vdc
- Built-in DALI power: 16 Vdc +/-5%, Max. current 250mA (Enabled/Disabled via a switch)
UART
- COM Port: RS-485/RS-232
- Connector: 3-pin Terminal Block (D+, D-, GND/TxD, RxD, GND), Jumper Selectable
- Transmission Speed (m): Depend on Baud Rate
- Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Protocol: DCON, Modbus RTU
USB
- Connector: USB Type B
- Transmission Speed: 12M bps
- Specification: USB 1.1 and USB 2.0 standard compatible
- OS Support: Windows XP (32/64-bit), Windows 7 (32/64-bit)
- Protocol: DCON and Modbus RTU via Virtual COM port
Led Indicators
System LED Indicators: PWR/RUN/ERR LED
EMS Protection
ESD (IEC 61000-4-2): +/-4 kV Contact for Each Terminal, +/-8 kV Air for Random Point
EFT (IEC 61000-4-4): +/-4 kV for Power Line
Surge (IEC 61000-4-5): +/-2 kV for Power Line
Power
Power Supply: Unregulated +10 Vdc ~ + 30 Vdc
Connector: 3-pin Terminal Block
Protection: Power reverse Polarity Protection, Overvoltage Brown-out Protection
Power Consumption: 6 W
Mechanism
Casing: Plastic
Installation: DIN-Rail Mounting
Dimensions: 107 mm x 72 mm x 57 mm ( L x W x H )
Environment
Operating Temp: -25 ~ 75 ℃
Storage Temp: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
