DB-8225/2

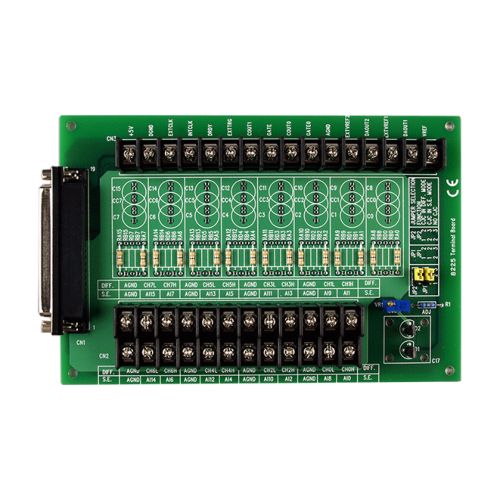

Female DB37 to Screw Terminal Board for A-82x Series, PCI-1800U
- Screw terminal board using 37 pin cable I/O ports for A-82X series, PCI-1800 series (16 channel single-ended or 8 channel differential)
- Blank pads for break detection, low-pass filter, current shut and voltage attenuation
- On board cold junction circuit in analog input channel 1 (jumper selectable single-ended, differential mode )
Screw terminal board using 37 pin cable I/O ports for A-82X series, PCI-1800 series 16 channel single-ended or 8 channel differential Blank pads for break detection, low-pass filter, current shut and voltage attenuation.
On board cold junction circuit in analog input channel 1 (Jumper selectable single-ended, differential mode)
Interface
Function Analog Input
Connector 1 x (37-pin male D-SUB to pin screw terminal)
Analog Input
Voltage Divider -
Input Filtering Low-Pass Filter
Analog Input Channels 16 (single-ended) or 8 (differential)
Digital Input
Digital Input Channels -
Signal Type -
On Voltage Level -
Off Voltage Level -
Digital Output
Digital Output Channels -
Signal Type -
Current -
Voltage -
Relay Output
Relay Channels -
Relay Type -
Release Time -
Operate Time -
Installation
Dimensions (WxLxH) 170mm x 114mm
Input Voltage Range 5 V
Operating Temperature 0 ~ 60 °C
Mounting Optional
