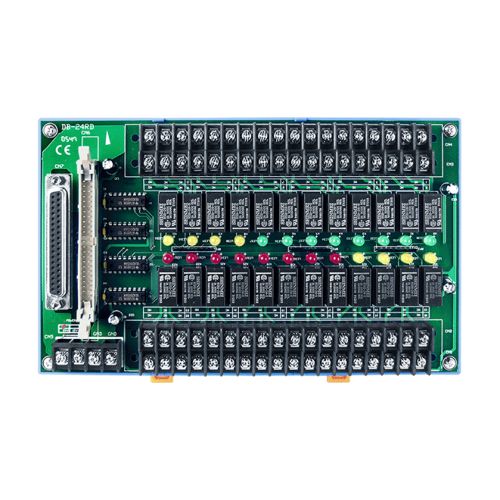

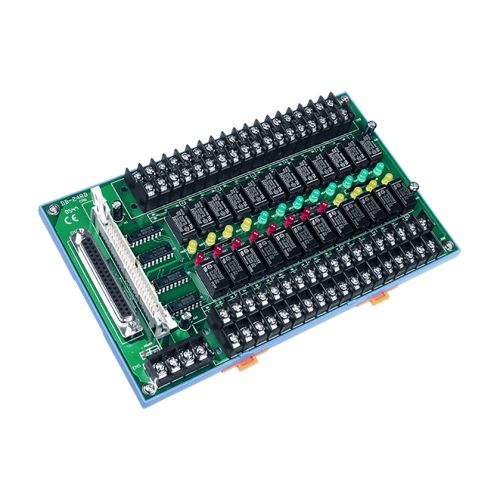

DB-24RD/24/DIN CR
24-ch Relay Board with DIN-rail Mounting (24V)
- 24 Form C Relays (SPDT)
- SPST: Single Pole Double Throe
- OPTO-22 Compatible Connector
- Connects directly to DIO-24,DIO-48,DIO-144 OPTO-22 compatible board or any 722,724 series board
- Switch up to 0.5A at 120 VAC
- Switch up to 1A at 24VDC
- On board relay driver circuits
- LED’s indicated relay status
- Screw terminals for easy field wiring
The DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control . The contact of each relay can control a 0.5 A /110 V load or 1A / 24VDC . The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin Opto-22 compatible connector or D-Sub 37 connector . Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated . To avoid overloading your PC’s power supply, this board needs a +12VDC or +24VDC external power supply.
FORM C RELAY
Type: 1 form C
Nominal load: 0.5 A /120 VAC , 1A /24 VDC
Max. Switching power: 60VA,24W
Max. Switching Voltage: 120VAC,60VDC
Max. Switching Current: 1A
Life Expectancy: Mechanical ( 2 x 107 ); Electrical ( 2 x 10 5)
Release Time Value: Operate ( 6 ms )
Control Logic: Input TTL high (+5V) , relay on
Power Consumption: +12V @0.3A max ,+5V @0.18A max
Dimension: 220mm X 132mm
Operating Temperature: 0 -60°C
Storage Temperature: -20~70°C
Humidity: 5% to 90 % non condensing
