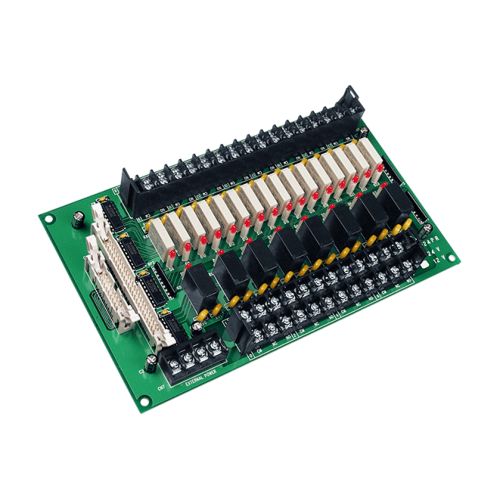

DB-24PR/24 CR
24-ch Power Relay Board (24V)
- 8 Form C relays (SPDT) and 16 Form A relays
- DB-24PR: Accepts a 50-pin connector to control 8 Form C and 16 Form A relays
- or accept a 20-pin connector to control 8 Form C and 8 Form A relays
- DB-24PRD: Accepts a 37-pin connector and a 50-pin connector to control 8 Form C and 16 Form A relays
- Switch up to 5 A at 250 VAC/5 A at 30 VDC
- LED-indicated relay status
- Includes a varistor to protect each channel against high voltage spike
- Screw terminals for easy field wiring
The DB-24PR/DB-24PRD is a 24-channel power relay output board which consists of 8 Form C and 16 Form A electromechanical relays for efficient load switching. The contact rating of each relay is 5 A at 250 VAC or 5 A at 30 VDC. These relays can be switched to ON by applying a 5 V signal from an I/O Card in the PC to the appropriate relay channels. The DB-24PR/DB-24PRD daughter board contains a single 50-pin OPTO-22 compatible connector, and a single 37-pin D-sub connector or a single 20-pin flat cable connector. The 24 onboard LEDs indicate the output status of the relays, illuminating when their associated relay is activated. To avoid overloading your PC’s power supply, this board requires either a +12 VDC or a +24 VDC external power supply.
Form A Relay Output
Nominal load: 250VAC@5A, 30VDC@5A
Max. switching power: 1250VA; 150W
Max. switching Voltage: 270VAC,150VDC
Max. switching Current: 5A
Life Expectancy: 20 millions operations (Mechanical)
Operate time: 10ms
Release time: 5ms
Form C Relay Output
Nominal load: 250VAC@5A, 30VDC@5A
Max. switching power: 1250VA(NO), 750VA(NC)
Max. switching Voltage: 250VAC, 150VDC
Max. switching Current: 5A
Life expectancy: 10 millions operations (Mechanical)
Operate time: 10ms
Release time: 5ms
Control Logic: Input TTL high (+5V), relay on
Dimension: 220mm X 132mm
