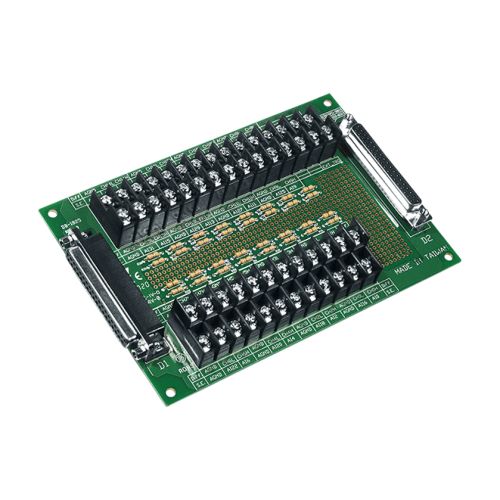

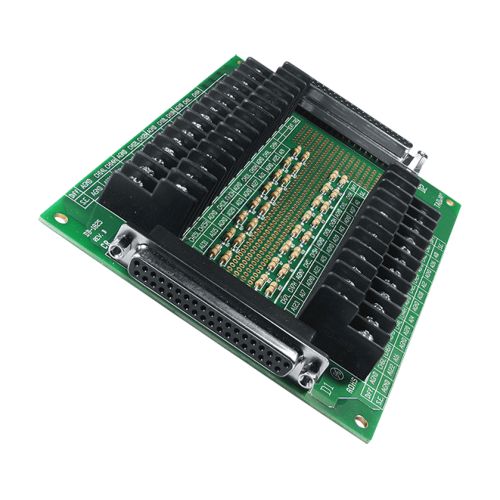

DB-1825 CR ICP DAS Data Acquisition Boards

• Screw terminal board using 37 pin cable I/O ports for PCI-1202/1602/1802/822/826 series , (32 channel single-ended ,16 channel differential)
• Blank pads for break detection, Low-pass filter , current shut and voltage divider (manual soldering)


Screw terminal board using 37-pin cable I/O ports for PCI-1802, PCI-1002, PCI-1202, ISO-AD32 series 32-channel single-ended, 16-channel differential Blank pads for break detection, low-pass filter, current shut and voltage attenuation.

Interface

Function Analog Input
Connector 2 x (37-pin female D-SUB to pin srew terminal)

Analog Input

Voltage Divider Manual Soldering
Input Filtering Low-Pass Filter
Analog Input Channels 32 (single-ended) or 16 (differential)

Digital Input

Digital Input Channels -
Signal Type -
On Voltage Level -
Off Voltage Level -

Digital Output

Digital Output Channels -
Signal Type -
Current -
Voltage -

Relay Output

Relay Channels -
Relay Type -
Release Time -
Operate Time -

Installation

Dimensions (WxLxH) 170mm x 114mm
Input Voltage Range 5 V
Operating Temperature 0 ~ 60 °C
Mounting Optional
