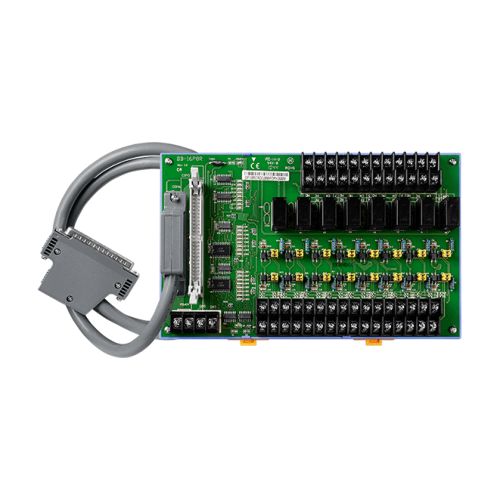

DB-16P8R/D/DIN CR, 16-ch Isolated Input and 8-ch Relay Board with DIN-rail Mounting (RoHS) Include: CA-3710 (DB37 Male to Male, 45º, 1M)
DB-16P8R/D/DIN CR
16-ch Isolated Input and 8-ch Relay Board with DIN-rail Mounting (RoHS) Include: CA-3710 (DB37 Male to Male, 45º, 1M)
Free Shipping
features and benefits
The DB-16P8R is a 16 channel isolated digital input & 8 channel relay output daughter board for DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U & PIO-D48U OPTO-22 Compatible digital I/O board
- 16 Optically isolated digital input channels
- 8 Relay output channels
- Connects directly to DIO24,DIO48,DIO144, PIO-D144U ,PIO-D96U , PIO-D48U OPTO-22 compatible digital input card or OPTO-22 compatible digital input board.
- Dry contact or wet contact by jumper select Input range : High 5~24Vdc / Low 0~1.8Vdc
specifications
| Channels | 16 | |
|---|---|---|
| Type | Dry+Wet Contact | |
| ON Voltage Level | Dry: Close to GND(TTL) | Wet: 2.8 V ~ 24 V(Max) |
| OFF Voltage Level | Dry: Open (TTL) | Wet: 1 V (Max) |
| Response Speed | 20us | |
| Input Impedance | 1.2K Ohm |
| Channels | 8 x FORM C |
|---|---|
| Type | 24 V Power Relay |
| Contact Rating | 250 VAC/5A , 30 VDC/5A |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 1 x 10^5 |
| Mechanical Endurance | 1 x 10^7 |
| Dimensions (mm) | 213 mm x 132 mm |
|---|---|
| Installation | DIN-rail mounting |
| Operating Temperature | 0 ~ 60°C |
|---|---|
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
