Model: DB-16P8R CR

Need Help?

  • 16 Optically isolated digital input channels
  • 8 Relay output channels
  • Connects directly to DIO24,DIO48,DIO144, PIO-D144 ,PIO-D96 , PIO-D48 OPTO-22
  • compatible digital input card or any 722,724 OPTO-22 compatible digital input board.
  • Isolation digital input
  • Dry contact or wet contact by jumper select Input range: High 5~24Vdc / Low 0~1.8Vdc
  • Input resistor: 1.2K Ohm/ 1W Input buffer with voltage comparators
  • Relay output 8-Channel Relay Output Max. Load 30Vdc/220Vac @5A

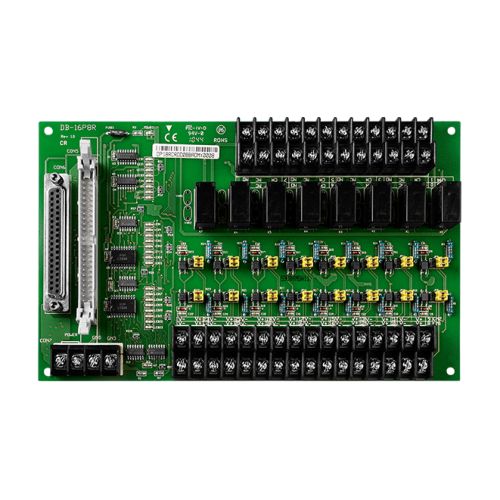

The DB-16P8R is a 16 channel isolated digital input & 8 channel relay output daughter board for DIO24, DIO48, DIO144, PCI-PIO144, PCI-PIO96 & PCI-PIO48 OPTO-22 Compatible digital I/O board or any 722, 724, digital input board.

Isolated Digital Input

Configuration: 16 optically isolated digital input channels
Compatibility: TTL compatible Digital Input
Number of channels: 16 , each with its own ground reference isolated from other channels
Maximum input voltage: 24 VDC or 24 VAC
Dry contact: Close: Output High(TTL); Open: Output Low (TTL)

Digital Logic Level

Input low voltage:
           Minimum: 0
           Maximum: 1V
Input high voltage:
           Minimum: 2.8VDC
           Maximum: 24VDC
Input impedance: 1.2k
Source Current
           5V inputs: 4mA/channel minimum
           24V inputs: 20mA/channel minimum

Response Time: 20us
Relay Output: Channel: 8, Coil voltage: 24VDC, Max. Load: 30Vdc / 220Vac @ 5A
Power Supplies:
          +5v: 300mA /maximum (via 50-pin D-sub connector)
          +24Vdc: External Input (Via screw terminal block) for Relay output

Board Dimension: 213mm x 132mm
Operating Temperature: 0 -60°C
Storage Temperature: -20~70°C
Humidity: 5% to 90 % noncondensing
