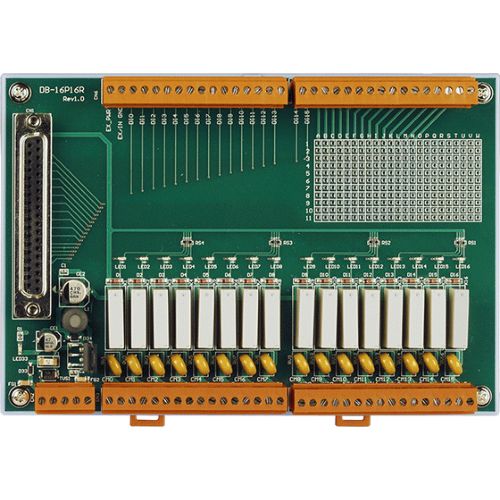

DB-16P16R CR ICP DAS Relay Boards

• Form A Signal Relay
• The DB-32R accepts 37-pin connectors to control 32 form A relays for use with PISO-C64 and ISO-C64
• The DB-16P16R accepts 37-pin connectors to control 16 form
• A relays and 16-channle input terminal for use with PISO-P32C32 and ISO-P32C32
• Each LED is displayed when the corresponding relay is activated Screw terminals for field wiring

Digital Input

Channels: 16
Max. Switching Voltage: Pin-to-pin terminals
Contact Current: Depending on PCI/ISA card used

Relay Output

Channels: 16
Contact Arrangement: SPST-NO (1 Form A)
Max. Switching Voltage: 125 VDC, 270 VAC Rated
Contact Current: 3A
Max. Contact Current: 5A
Max. Contact Capacity: 1250 VA, 150 W
Operate Time (typical): 10 ms
Release Time (typical): 10 ms
Electrical Life (Resistive Load):
              250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute)
              250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute)
Mechanical Life: 20,000,000 ops. At no load. (300 ops./minute)

Mechanical

Dimensions: 118 mm x 174 mm
Installation: DIN-Rail mounting

Environment

Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Humidity: 10% ~ 90%, no condensing

Power Requirements

Power Input: +12 ~ 30 VDC
Power Consumption: 0.25 A @ +24 V Max.
