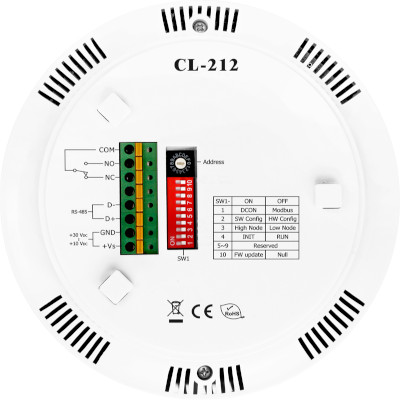

CL-212 CR ICP DAS IO Sensor

• PM2.5, CO, CO2, Temperature, Humidity and Dew Point Measurement
• Non-dispersive Infrared (NDIR) CO2 Sensor
• Up to 450,000 records with date and time stamps
• Support DCON and Modbus RTU Protocols
• Providing RS-485 Communication Interface
• Relay Output for Alarm Device or IAQ Device Control

INTRODUCTIONS

The CL-200 series of Data Logger devices can be used to record PM2.5, CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300 Utility from anywhere and at any time using the free Windows software.Support is provided for popular industrial protocols such as DCON and Modbus RTU. The DL-300 Data Logger can be connected via widely used RS-485 communication interfaces, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

APPLICATIONS

● Transportation of Food or Pharmaceuticals
● Food and Beverage Industry (HACCP)
● Blood Stations and Pharmacies
● Building and Energy Management
● Warehouse Management
● Museums, Archives and Galleries

I/O SPECIFICATIONS

PM2.5 Measurement
Range: 0 ~ 400 μg/m3
Resolution: 1μg/m3
Response Time: <= 1 min.

CO Measurement
Range: -
Resolution: -
Accuracy: -
Response Time: -
Warm-up Time:   -

CO2 Measurement
Range: 0 to 9999 ppm (NDIR)
Resolution: 1 ppm
Accuracy: ±40 ppm ±3% of measured value
Response Time: 120 seconds
Warm-up Time: 5 minutes

Temperature Measurement
Range: -10 to +50°C
Resolution: 0.1°C
Accuracy: ±0.6°C

Relative Humidity Measurement
Range: 0 to 100% RH
Resolution: 0.1% RH
Accuracy: ±5% RH

Dew Point
Range: Calculated using temperature and relative humidity
Resolution: 0.1°C

System
PM2.5/CO2/RH/T Alarm: Yes
Real Time Clock: Yes
Data Logger: Yes, up to 450,000 records
Relay Output: Form Ax1, SPST
                30 VDC @ 16 A or 250 VAC @ 16 A

Interface RS-485

Electrical
Powered from Terminal Block: +10 to +30 VDC
Power Consumption: 1.2 W (Max.)

Mechanical
Installation: Ceiling Mounting
Protection Class: IP20
Dimensions (D x H): Ø 150 mm x 53 mm

Environment
Operating Temperature: 0 to +50°C
Storage Temperature: -30 to +75°C
Humidity: 10 to 90% RH, Non-condensing

SYSTEM SPECIFICATIONS

System
PM2.5/CO/CO2/RH/T Alarm: Yes
Real Time Clock: Yes
Data Logger: Yes, up to 450,000 records
Relay Output: Form Ax1, SPST
                30 VDC @ 16 A or 250 VAC @ 16 A

Interface: RS-485

Electrical
Powered from Terminal Block: +10 to +30 VDC
Power Consumption: 1.2 W (Max.)

Mechanical
Installation: Ceiling Mounting/Wall Mounting
Protection Class: IP20
Dimensions (D x H): Ø 150 mm x 53 mm

Environment
Operating Temperature: 0 to +50°C
Storage Temperature: -30 to +75°C
Humidity: 10 to 90% RH, Non-condensing
