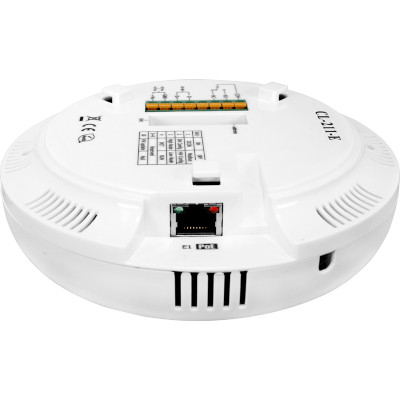

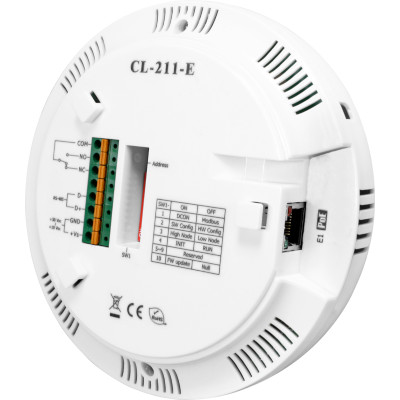

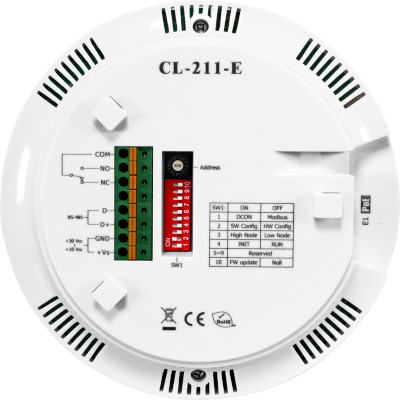

CL-211-E CR ICP DAS IO Sensor

• Able to record PM2.5, CO, CO2, Temperature, Humidity and Dew Point Measurements
• Non-dispersive Infrared (NDIR) CO2 Sensor
• Up to 450,000 records with date and time stamps
• Supports the DCON, Modubs RTU/TCP, and MQTT Protocols
• Includes RS-485/Ethernet Communication Interfaces
• Relay Output for Alarm or IAQ Device Control

INTRODUCTION

The CL-200 series of data logger devices can be used to record PM2.5, CO, CO2, temperature, humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records.
Real-time data can be accessed from the CL-200 data logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as they are connected to the same local network as the data logger.
Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machineto- machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200 data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems.

SYSTEM SPECIFICATIONS

System
PM2.5/CO/CO2/RH/T Alarm: Yes
Real Time Clock: Yes
Data Logger: Yes, up to 450,000 records
Relay Output: Form A×1, SPST
                 30 VDC @ 16 A or 250 VAC @ 16 A

Interface: RS-485/Ethernet

Electrical
Powered from Terminal Block: +12 to +48 VDC
Power Consumption Non-PoE: 2.66 W (Max.)
Power Consumption PoE: 2.73 W (Max.)

Mechanical
Installation: Ceiling Mounting/Wall Mounting
Protection Class: IP20
Dimensions (D x H): Ø 150 mm x 53 mm

Environment
Operating Temperature: 0 to +50°C
Storage Temperature: -30 to +75°C
Humidity: 10 to 90% RH, Non-condensing

I/O SPECIFICATIONS

PM2.5 Measurement
Range: 0 ~ 400 μg/m3
Resolution: 1μg/m3
Response Time: <= 1 min.

CO Measurement
Range: 0 to 1000 ppm (Electrochemical)
Resolution: 1 ppm
Accuracy: ±5% of measured value
Response Time: 30 seconds
Warm-up Time: 300 seconds

CO2 Measurement
Range: -
Resolution: -
Accuracy: -
Response Time: -
Warm-up Time: -

Temperature Measurement
Range: -10 to +50°C
Resolution: 0.1°C
Accuracy: ±0.6°C

Relative Humidity Measurement
Range: 0 to 100% RH
Resolution: 0.1% RH
Accuracy: ±5% RH

Dew Point
Range: Calculated using temperature and relative humidity
Resolution: 0.1°C
