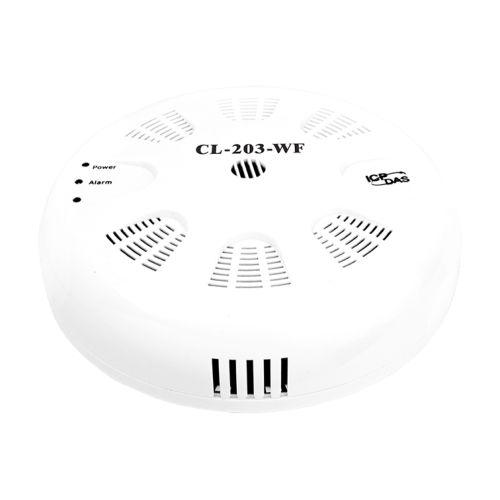

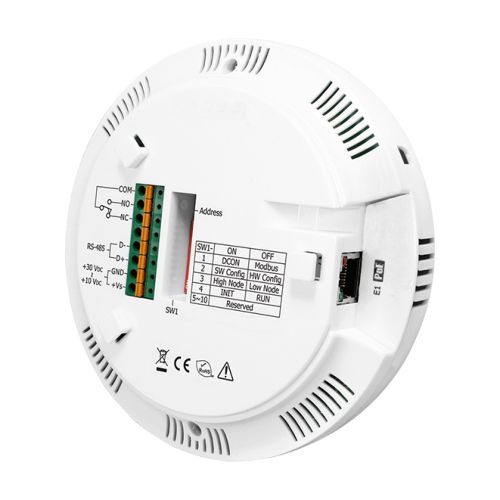

CL-203-WF CR, CO/CO2/Temperature/Humidity/Dew Point Data Logger Module (RS-485, Ethernet PoE, Wi-Fi)
CL-203-WF CR
CO/CO2/Temperature/Humidity/Dew Point Data Logger Module (RS-485, Ethernet PoE, Wi-Fi)
Free Shipping
Features
- Able to record CO, CO2, Temperature, Humidity and Dew Point Measurements
- Non-dispersive Infrared (NDIR) CO2 Sensor
- Up to 450,000 records with date and time stamps
- Simple and Powerful Software Utility, iOS APP and Android App Included
- Supports the DCON and Modbus RTU/TCP Protocols
- Supports the MQTT Protocol for Ethernet Interface
- Includes RS-485/Ethernet/Wi-Fi Communication Interfaces
- Relay Output for Alarm or IAQ Device Control
- Compatible with IEEE802.11b/g/n standards
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- Support Infrastructure and Limit-AP Modes for Wireless Networks
- Ceiling Mounting or Wall Mounting
Introduction
The CL-200-WF is an IAQ (Indoor Air Quality) monitoring module that includes Wi-Fi, Ethernet and RS-485 interfaces, It provides a WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the modules provide an easy method of incorporating wireless connectivity into monitoring and control systems. The CL-200-WF series of Data Logger devices can be used to record CO, CO2, HCHO, H2S, NH3, TVOC, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the CL-200-WF Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger.
Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP. For Ethernet interface, it also supports the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200-WF Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet, PoE and Wi-Fi, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easily maintained in a distributed control system.
Applications
- Transportation of Food or Pharmaceuticals
- Food and Beverage Industry (HACCP)
- Blood Stations and Pharmacies
- Building and Energy Management
- Warehouse Management
- Museums, Archives and Galleries
Specifications
CPU Module
Watchdog Timer: Yes, Module (2.3 seconds), Communication (Programmable)
Temperature Measurement
Range: -10 ~ +50°C
Resolution: 0.1°C
Accuracy: ±0.6°C
Humidity Measurement
Range: 0 ~ 100% RH, Non-condensing
Resolution: 0.1% RH, Non-condensing
Accuracy: ±5% RH, Non-condensing
CO Measurement
Range: 0 to 1000 ppm (Electrochemical)
Resolution: 1 ppm
Accuracy: ±5% of measured value
Response Time: 30 seconds
Warm-up Time: 5 minutes
CO2 Measurement
Range: 0 to 9999 ppm (NDIR)
Resolution: 1 ppm
Accuracy: ±40 ppm ±3% of measured value
Response Time: 120 seconds
Warm-up Time: 5 minutes
System
Security: IP filter (whitelist) and Password (web)
Alarm: CO/CO2/RH/Temperature
Real Time Clock: Yes
Data Logger: Yes, up to 450,000 records
Wi-Fi
Transmission Distance (LoS): 50 meters (LOS)
Standard Supported: IEEE 802.11 b/g/n
RX Sensitivity: -95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM
Output Power: 18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM
Mode: Infrastructure & Limited AP
Encryption: WEP, WPA and WPA2
Antenna: 1 dBi (PCB Antenna)
Relay Output
Channels: 1 x Form A, SPST 30 VDC @ 16 A or 250 VAC @ 16 A
COM Ports
Ports: 1 x RS-485
1 x Ethernet
Baud Rate: 1200 ~ 115200 bps
Protocol: DCON and Modbus/RTU (RS-485)
Modbus TCP (Ethernet, Wi-Fi)
MQTT (Ethernet)
Ethernet
Ports: 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators)
Power
Consumption: Non-PoE: 1.7 W (Max.)
PoE: 1.8 W (Max.)
Powered from Terminal Block: +12 ~ +48 VDC
Mechanical
Dimensions (mm): Ø 150 x 53 (Ø x H)
Installation: Ceiling Mounting/Wall Mounting
Ingress Protection Rating: IP20
Environment
Operating Temperature: 0 ~ 50°C
Storage Temperature: -30 ~ +75°C
Humidity: 10 ~ 90% RH, Non-condensing
