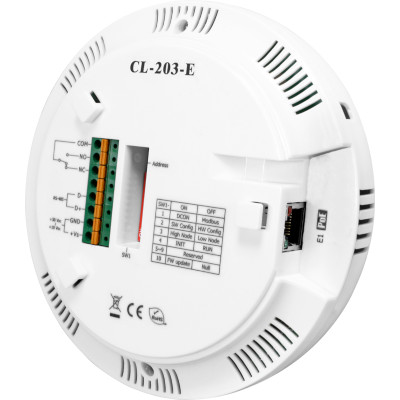

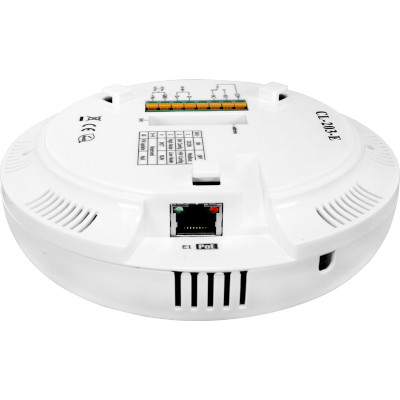

CL-203-E CR ICP DAS IO Sensor



CL-203-E CR

CO/CO2/Temperature/Humidity/Dew Point Data Logger Module (RS-485, Ethernet PoE)



€ 436,36

(VAT excluded)

€ 532,36(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 532,36

Availability: 15 business days

SKU: 110959

Model: CL-203-E CR

Need Help?

  • Able to record CO, CO2, HCHO, TVOC, Temperature, Humidity and Dew Point Measurements
  • Non-dispersive Infrared (NDIR) CO2 Sensor
  • HCHO: Electrochemical Sensor
  • VCO: Metal-Oxide Sensor
  • Up to 450,000 records with date and time stamps
  • Supports the DCON, Modubs RTU/TCP, and MQTT Protocols
  • Includes RS-485/Ethernet Communication Interfaces
  • Relay Output for Alarm or IAQ Device Control


The CL-200 series of data logger devices can be used to record HCHO, TVOC, CO, CO2, temperature, humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records.
Real-time data can be accessed from the CL-200 data logger from anywhere and at any time using the free Windows software, the iSO App, or the Android App, as long as they are connected to the same local network as the data logger.
Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machineto-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200 data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems.


CO/CO2/HCHO/RH/T Alarm: Yes
Real Time Clock: Yes
Data Logger: Yes, up to 450,000 records
Relay Output: Form A×1, SPST
                30 VDC @ 16 A or 250 VAC @ 16 A
Interface: RS-485/Ethernet
Powered from Terminal Block: +12 to +48 VDC
Power Consumption: 1.7 W (Max.)
Installation: Ceiling Mounting/Wall Mounting
Protection Class: IP20
Dimensions (D x H): Ø 150 mm x 53 mm
Operating Temperature: 0 to +50°C
Storage Temperature: -1 ppm
Humidity: 10 to 90% RH, Non-condensing


HCHO Measurement
Range: -
Resolution: -
Accuracy: -
Response Time: -
TVOC Measurement
Range: -
Resolution: -
Accuracy: -
Response Time: -
Warm-up Time: -
CO Measurement
Range: 0 to 1000 ppm (Electrochemical)
Resolution: 1 ppm
Accuracy: ±5% of measured value
Response Time: 30 seconds
Warm-up Time: 300 seconds
CO2 Measurement
Range: 0 to 9999 ppm (NDIR)
Resolution: 1 ppm
Accuracy: ±40 ppm ±3% of measured value
Response Time: 120 seconds
Warm-up Time: 5 minutes
Temperature Measurement
Range: -10 to +50°C
Resolution: 0.1°C
Accuracy: ±0.6°C
Relative Humidity Measurement
Range: 0 to 100% RH, Non-condensing
Resolution: 0.1% RH, Non-condensing
Accuracy: ±5% RH, Non-condensing
Dew Point
Range: Calculated using temperature and relative humidity
Resolution: 0.1°C
