CAN-Logger200 CR ICP DAS Data Logger

CAN-Logger200 CR ICP DAS

CAN-Logger200 CR ICP DAS

CAN-Logger200 CR

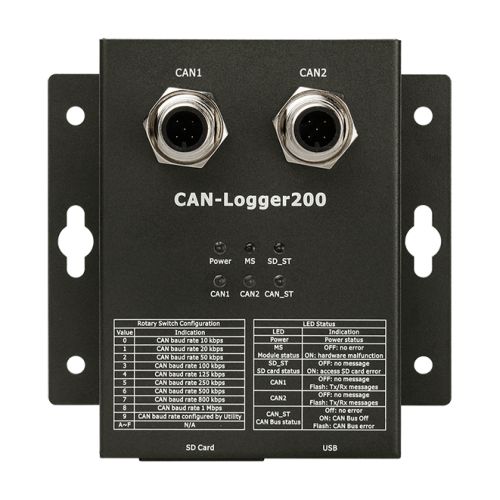

2-port CAN Bus Data Logger Device

Quantity:

Price

€ 504,83

(VAT excluded)

€ 615,89(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 615,89

Availability: 15 business days

SKU: 110678

Model: CAN-Logger200 CR

Need Help?


  • Compatible with CAN specification 2.0 parts A and B
  • 2500 Vrms photocoupler isolation on the CAN side
  • Full compatible with the ISO 11898-2 standard
  • Supports CAN bus acceptance filter configuration
  • Max. CAN data flow for a single channel is 15000 fps
  • Programmable CAN bus baud rate from 10 kbps ~ 1Mbps
  • USB 2.0 High Speed Compatibility
  • Supports 4 to 32 GB SDHC type flash for saving CAN messages
  • Built-in jumper for the 120 Ω terminal resistor of the CAN side
  • Power by the USB port or CAN port
  • 3 kV galvanic isolation for the CAN port
  • Provides a configuration utility that can be used to transmit/receive CAN messages

INTRODUCTION

The CAN-Logger series devices (CAN-Logger100 / CAN-Logger200) are high-performance intelligent CAN bus data logger device with one/two CAN port that can help to make data collection and to process on a CAN bus network easier and quicker. The powerful CPU of the CAN-Logger devices provide the accurately time-stamp for each CAN message and supports storage media like SD or SDHC type flash for saving these CAN messages that is useful to analysis and diagnostic the CAN Bus network. In order to enhance the portability of the CAN-Logger200, this module is powered by the USB interface or M12 connectors of CAN bus interface. The CAN-Logger devices use the standard USB HID driver of the Windows system.

APPLICATIONS

  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

HARDWARE SPECIFICATIONS

CAN Interface
Transceiver: NXP TJA1042
Channel Number: 2
Connector: 5-Pin male M12 x 2 (Pin 1: F.G., Pin 2: +Vs, Pin 3: GND, Pin 4: CAN_H Pin 5: CAN_L)
Transmission Speed (bps): 10 k, 20 k, 50 k, 100 k, 125 k, 250 k, 500 k, 800 k, 1 M and user-defined baud rate
Terminator Resistor: DIP switch for the 120 Ω terminator resistor
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
CAN Filter Configuration: Utility tool

USB Interface
Connector: USB Type B x 1
Compatibility: USB 2.0 High Speed
Max. Data flow: Transmit: 4000 fps ; Receive: 1000 fps
Software Driver: Windows 2K/XP/7/8/10

Data Logger Capability
Storage Media: SDHC type flash – support 4 to 32 GB
Recording Format: Binary
Time Stamp: 10 us
Configuration: Utility tool
Data Logger: Maximum message rate, receive: 15000 msgs/s
Trigger: Log continuously

LED
Round LED: Power, MS, SD, CAN_Rx, CAN_Tx, CAN_ST LEDs

Power
Power supply: USB power or CAN bus power (Unregulated +10 ~ +30 VDC) delivery
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 0.1A @ 24VDC

Mechanism
Installation: Wall Mount
Casing: Metal
Dimensions: 102.0 mm x 102.0 mm x 44.0 mm (W x L x H)

Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
