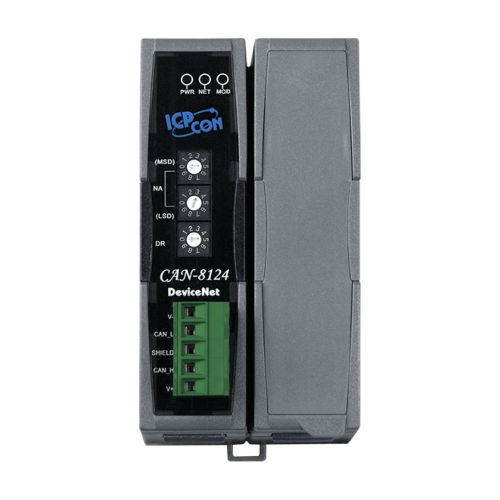

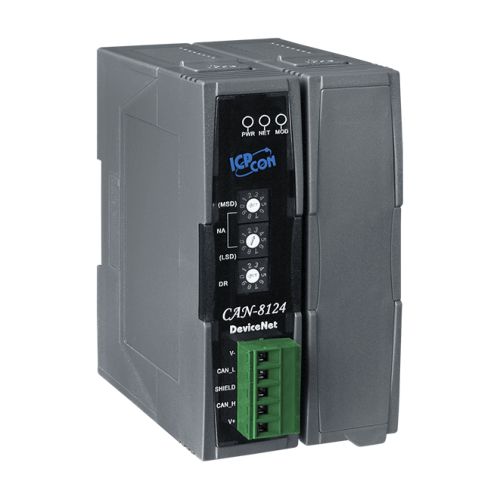

CAN-8124-G, DeviceNet Remote I/O Unit with 1 I/O Slot
CAN-8124-G
DeviceNet Remote I/O Unit with 1 I/O Slot
Free Shipping
Features
- DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
- Number of Nodes : 64(Max)
- Support Message Groups : Group 2 only Server
- UCMM : Not Support
- I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
- No. of Fragment I/O : 128 Bytes (Max) (Input/ Output)
- MAC ID Setting : Rotary Switch
- Baud Rate Setting : Rotary Switch
Introduction

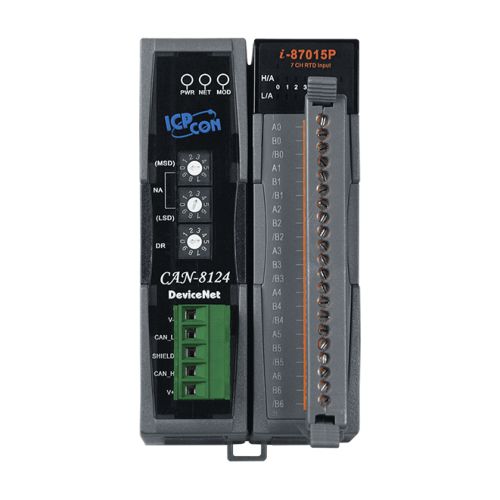

The CAN-8124 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8124 supports 1 slot for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules. Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces.
Applications
- Automotive
- Food & Beverage
- Packaging
- High-speed Assembly
- Pulp & Paper
- Semiconductor Fabrication
- Control System...etc.
Specifications
CPU Module
CPU: 80186, 80 MHz or compatible
EEPROM: 16 KB
Flash: 512 KB
NVRAM: 31 bytes (battery backup, data valid for up to 10 years)
SRAM: 512 KB
Real Time Clock: Yes
Watchdog Timer: Watchdog IC
LED Indicators
Status: 1 x Power
2 x DeviceNet status
I/O Expansion
Slots: 1 slots
DeviceNet
Controller: NXP SJA1000T with 16 MHz clock
Ports: 1
Connection Supported: 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
1 connection for COS/Cyclic I/O
Baud Rate: 125 k, 250 k, 500 k
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor: Jumper for 120 Ω terminal resistor
Specification: Volume I, Release 2.0 & Volume II, Release 2.0
Node ID: 0 ~ 63
Shutdown Message: Yes
Subscribe: Group 2 Only Server
Power
Input Range: +10 VDC ~ +30 VDC
Consumption: 1.7 W
Mechanical
Dimensions (mm): 64 x 119 x 91 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 ℃
Storage Temperature: -30 ~ +80 ℃
Humidity: 10 ~ 90% RH, Non-condensing
