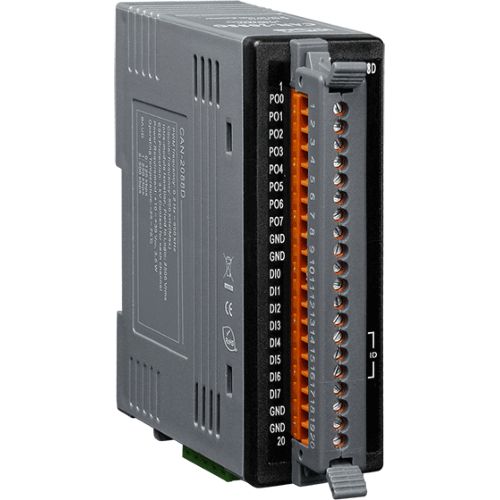

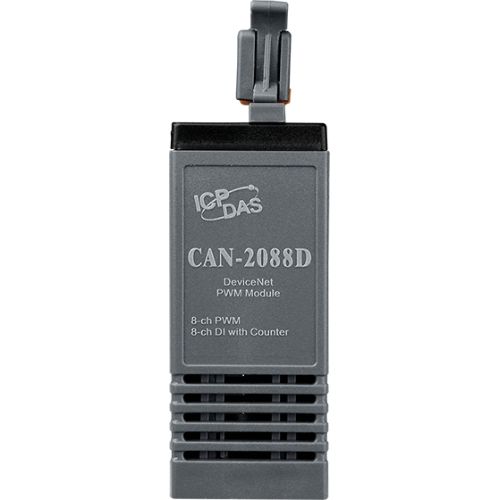

CAN-2088D CR ICP DAS DeviceNet

• Hardware-controlled PWM output
• PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle
• PWM Output Modes: software trigger / hardware
• trigger
• Trigger each PWM output individually or all PWM
• outputs synchronously
• Support Burst output mode and Continue output
• mode
• Provide 32-bit 500 kHz high-speed counter for each DI
• channel
• Pass the validation of DeviceNet conformance test
• Provide EDS file for DeviceNet master interface

Introduction

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. By using digital outputs, it can generate a waveform with variant duty cycle and frequency to control analog
circuits. CAN-2088D, a CAN bus remote I/O modules with DeviceNet protocol, provides 8 PWM output channels and 8 digital inputs channels with high-speed counter function. It can be used to
develop practical and economical analog control systems in the DevicdNet network.

CAN Interface

DeviceNet Specification: Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
DeviceNet subscribe: Group 2 Only Server
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O

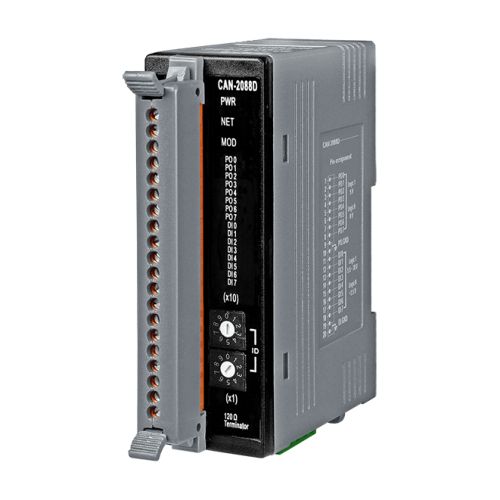

Node ID: 0~63 selected by rotary switch

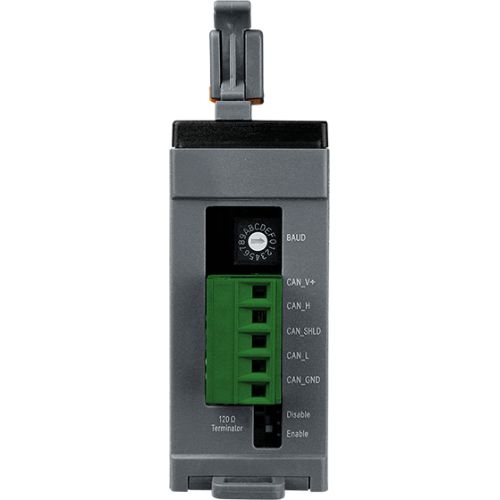

Baud Rate (bps): 125 kbps, 250 kbps, 500 kbps
Heartbeat message: Yes
Shutdown message: Yes
Terminator Resistor: Switch for 120 Ω terminator resistor

PWM Interface

Channels: 8 (Source)
Output Max. Load: Current 1 mA
Frequency Range: 0.2 Hz ~ 500 kHz (non-continuous, the min. units of the high/low level signal is 1 us)
PWM Mode: Continue mode, Burst mode, Hardware trigger mode, Software trigger mode
ESD Protection: 4 kV Contact for each channel

DI Interface

Channels  8 (Sink)
Counter Frequency  32-bit, 500 kHz Max.

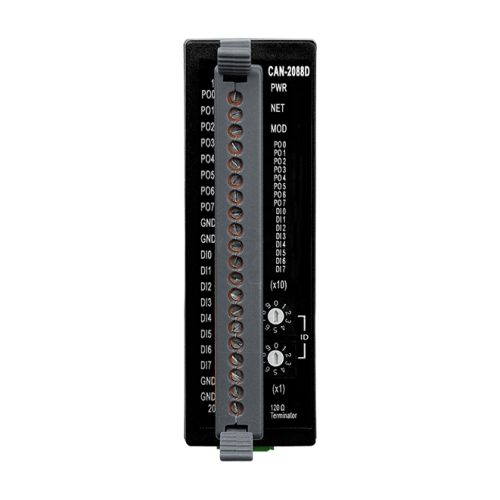

LED

Round LED  PWR LED, NET LED, MOD LED
I/O LED: 8 LEDs as PWM, 8 LEDs as Digital Input, and 1 LED as terminal resister indicator

Power

Input range: Unregulated +10 ~ +30 VDC
Power Consumption: 3.5 W

Mechanism

Installation: DIN-Rail
Dimensions: 32.3 mm x 99 mm x 77.5 mm (W x L x H)

Environment

Operating Temp:  -25 ~ +75  ℃
Storage Temp:  -30 ~ +80  ℃
Humidity: 10 ~ 90% RH, non-condensing
