CAN-2060C CR ICP DAS CAN

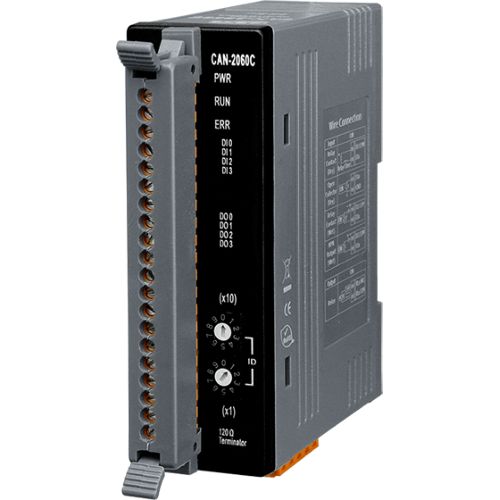

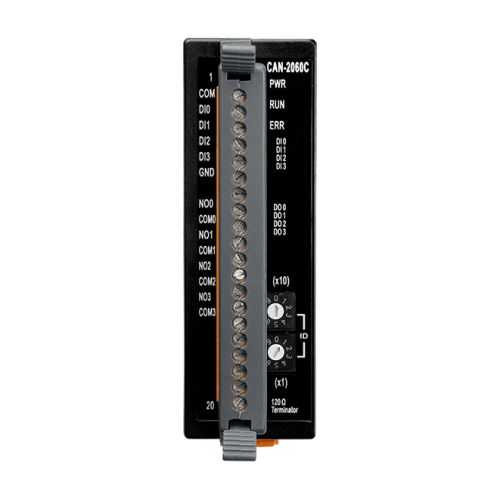

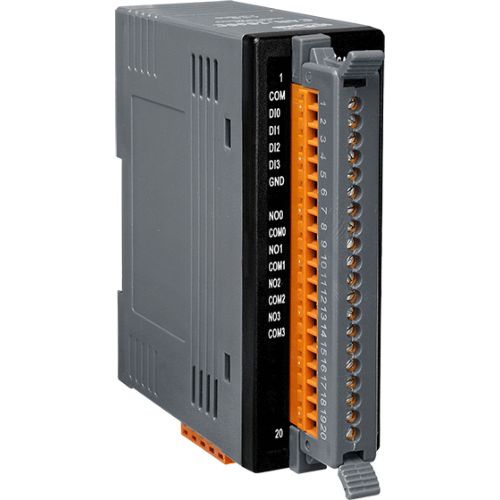

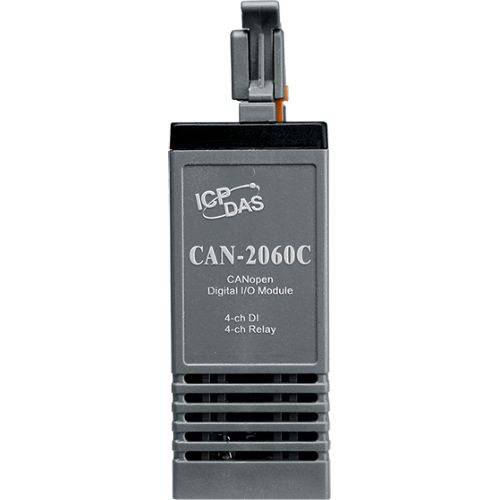

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. CAN-2060C module follows the CiA-301 version 4.02 and CiA-401 version 2.1. You can access the digital I/O status and set the configuration by using standard CANopen protocol. CAN-2060C has passed the validation of the CiA CANopen conformance test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2060C has 4 isolated sink/source input channels and 4 Relay output channelsl, It can be used to various applications. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.



Watchdog Timer: Hardware watchdog



Status: 3 LEDs to PWR, RUN and ERR



Channels: 4

Type: Wet Contact

Sink/Source (NPN/PNP): Sink/Source

ON Voltage Level: +3.5 ~ +30 VDC

OFF Voltage Level: +1 VDC Max

Input Impedance: 3kΩ, 0.3W



Channels: 4

Type: Form A (SPST-NO)

Operate Time: 10ms max

Release Time: 5ms max

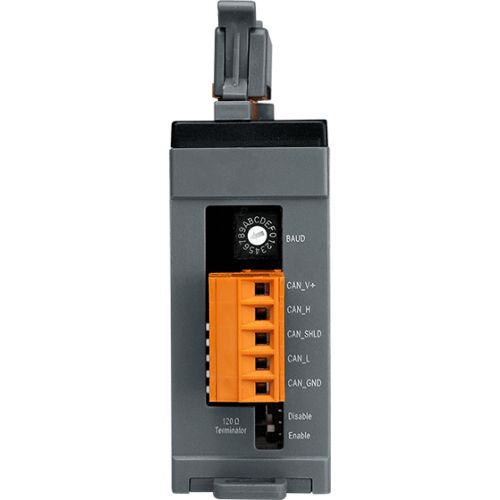

Baud Rate: 10 k ~ 1 M

Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple

Terminal Resistor: Built-in 120Ω

Protocol: CiA 301 v4.02, CiA 401 v2.1

Node ID: 1 ~ 99

No. of PDOs: 10 RxPDO , 10 TxPDO

PDO Mode: Event-triggered, remotely-requested, Cyclic and acyclic SYNC

Error Control: Node Guarding protocol / Heartbeat Producer

NMT: Slave

EMCY Message: Yes



Consumption: 1.7 W



Dimensions (mm): 33 x 99 x 78 ( W x L x H )

Installation: DIN-Rail



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
