CAN-2054D CR ICP DAS DeviceNet

CAN-2054D CR ICP DAS

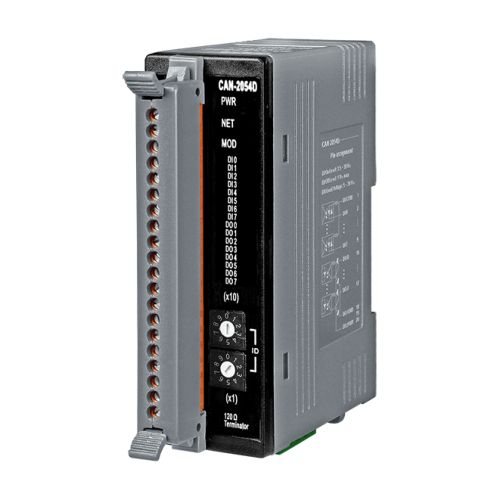

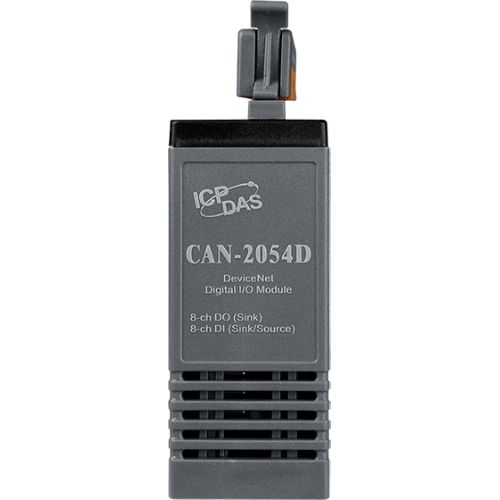

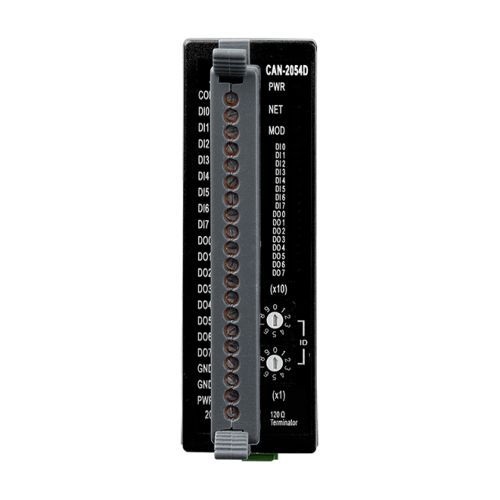

CAN-2054D CR

DeviceNet Slave Module of 8-channel Isolated (Wet) Digital input, 8-channel Isolated (Sink, NPN) DO

Quantity:

Price

€ 174,55

(VAT excluded)

€ 212,95(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 212,95

Availability: 15 business days

SKU: 4310

Model: CAN-2054D CR

Need Help?


DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The CAN-2054D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 8-channel isolated sink/source input and 8-channel isolated sink output. It can be applied to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.

Device Net Interface


DeviceNet Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe Group 2 Only Server
Connection supported: 1 connection for Explicit Messaging   -   1 connection for Polled I/O   -   1 connection for Bit-Strobe I/O
Baud Rate: Setting by Rotary Switch: 125 kbps, 250 kbps, 500 kbps
Node ID: Setting by Rotary Switch: 0 ~ 63
Heartbeat message: Yes
Shutdown message: Yes
Terminator Resistor: Switch for 120 Ω terminator resistor
Connector: 5-pin screwed terminal block  -  (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file: Yes
LED PWR/NET/MOD

Digital Input

Channels: 8 (Sink/Source)
On Voltage Level: +3.5 ~ +30 VDC
Off Voltage Level: +1 VDC Max.
Input Impedance: 3 kΩ, 0.3 W
Intra-module Isolation: 3750 Vrms
ESD Protection: 4 kV Contact for each channel

Digital Output

Channels: 8 (Sink)
Load Voltage: +5 ~ +30 VDC
Output Max Load Current: 700 mA per channel
Output Type: Open Collector
Intra-module Isolation: 3750 Vrms
ESD Protection: 4 kV Contact for each channel

LED

DeviceNet Status: 3 LEDs for PWR/NET/MOD
Terminal Resister: 1 LED to terminal resister indicators
DI LED 8 LEDs to digital input indicators
DO LED 8 LEDs to digital output indicators

Power

Power Supply Unregulated: +10 ~ +30 VDC
Power Consumption: 1.5 W

Mechanism

Installation: DIN-Rail
Dimensions: 32.3 mm x 99 mm x 77.5 mm ( W x L x H )

Environment

Operating Temp: -25 ~ 75 ℃
Storage Temp: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
