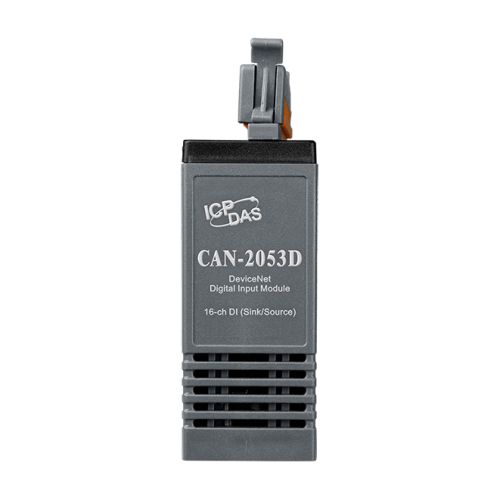

CAN-2053D CR
DeviceNet Slave Module of 16-channel Isolated (Wet) DI
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.
The CAN-2053D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital output status and set the configuration via DeviceNet EDS file. CAN-2053D has 16-channel isolated sink/source input and it can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.
DeviceNet Interface
DeviceNet Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe Group 2 Only Server
Connection supported: 1 connection for Explicit Messaging - 1 connection for Polled I/O - 1 connection for Bit-Strobe I/O
Baud Rate: Setting by Rotary Switch: 125 kbps, 250 kbps, 500 kbps
Node ID: Setting by Rotary Switch: 0 ~ 63
Heartbeat message: Yes
Shutdown message: Yes
Terminator Resistor: Switch for 120 Ω terminator resistor

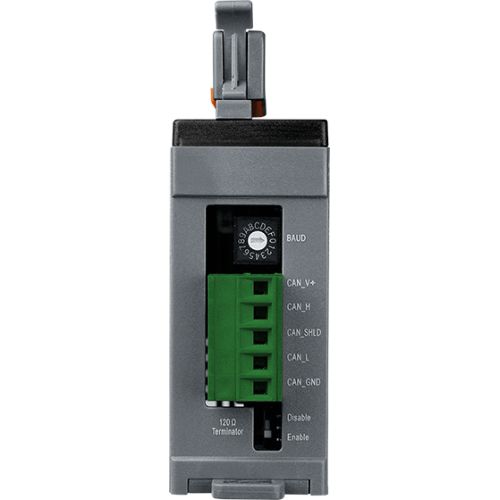

Connector 5-pin screwed terminal block - (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file: Yes
LED PWR/NET/MOD
Digital Input
Channels: 16 (Sink/Source)
ON Voltage Level: +3.5 ~ +30 VDC
OFF Voltage Leve: +1 VDC Max.
Input Impedance: 3 kΩ, 0.3 W
Intra-module Isolation: 3750 Vrms
ESD Protection: 4 kV contact for each channel
LED
DeviceNet Status: 3 LEDs for PWR/NET/MOD
Terminal Resister: 1 LED as terminal resister indicators
DI LED 16 LEDs as digital input indicators
Power
Power Supply Unregulated: +10 ~ +30 VDC
Power Consumption: 1.5 W
Mechanism
Installation: DIN-Rail
Dimensions: 32.3 mm x 99 mm x 77.5 mm ( W x L x H )
Environment
Operating Temp: -25 ~ 75 ℃
Storage Temp: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
