CAN-2024D CR
DeviceNet Slave Module of 4-channel 14-bit AO
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.
The CAN-2024D follows DeviceNet specification Volume I/II, Release 2.0. User can access the analog output status and set the configuration via DeviceNet EDS file. CAN-2024D has 4-channel 14-bit analog output and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.
DeviceNet Interface
DeviceNet Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe Group 2 Only Server
Connection supported: 1 connection for Explicit Messaging - 1 connection for Polled I/O - 1 connection for Bit-Strobe I/O

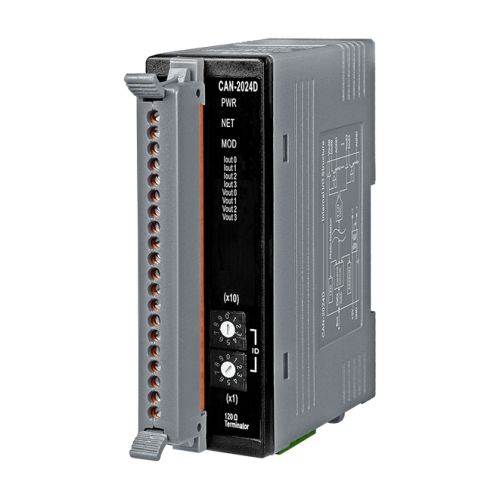

Baud Rate: Setting by Rotary Switch: 125 kbps, 250 kbps, 500 kbps
Node ID: Setting by Rotary Switch: 0 ~ 63
Heartbeat message: Yes
Shutdown message: Yes
Terminator Resistor: Switch for 120 Ω terminator resistor

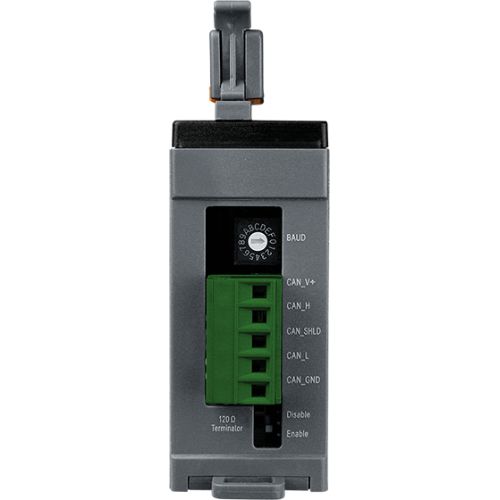

Connector 5-pin screwed terminal block
(CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file: Yes
LED PWR/NET/MOD

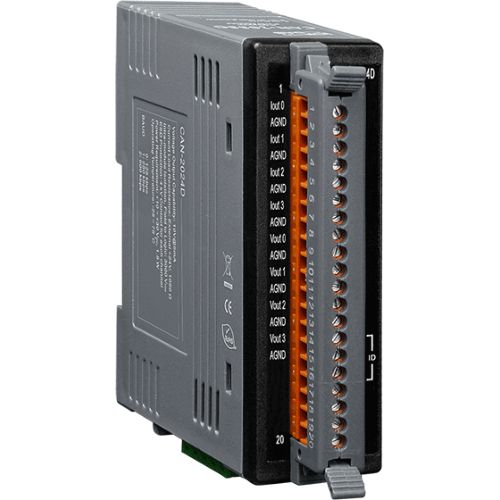

Analog Output
Channels: 4
Output Type: 0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution: 14-bit
Accuracy: +/- 0.1 % of FSR for voltage output ; +/- 0.2 % of FSR for current output
Zero Drift: Voltage: +/-30μV/°C - Current: +/-0.2μV/°C
Span Drift: +/-20ppm/°C
Voltage Output Capability 10V@5mA
Max Current Load Resistance External +24 V: 1050 Ohms
Power-Up and Safe Value: Yes
4KV ESD Protection: Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic 3000 VDC

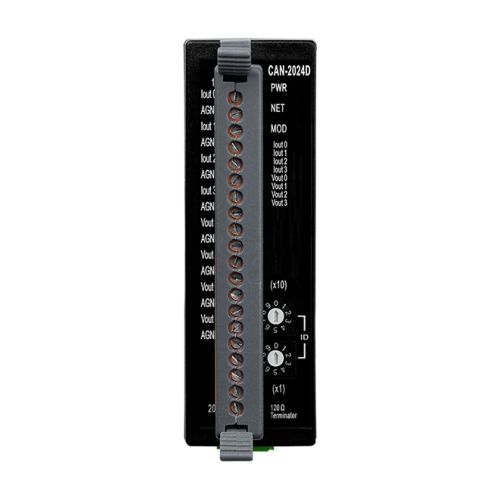

LED
DeviceNet Status: 3 LEDs for PWR/NET/MOD
Terminal Resister: 1 LED as terminal resister indicators
AO LED 8 LEDs as analog output indicators
Power
Power Supply Unregulated: +10 ~ +30 VDC
Power Consumption: 1.5 W
Mechanism
Installation: DIN-Rail
Dimension: 32.3 mm x 99 mm x 77.5 mm ( W x L x H )
Environment
Operating Temp: -25 ~ 75 ℃
Storage Temp: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
