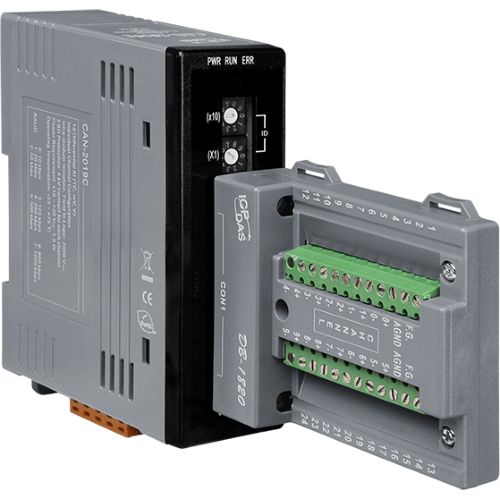

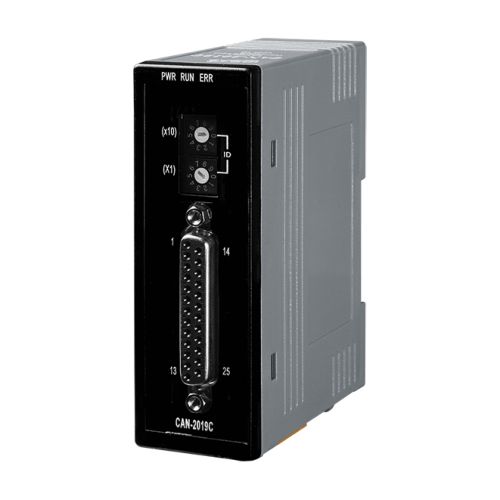

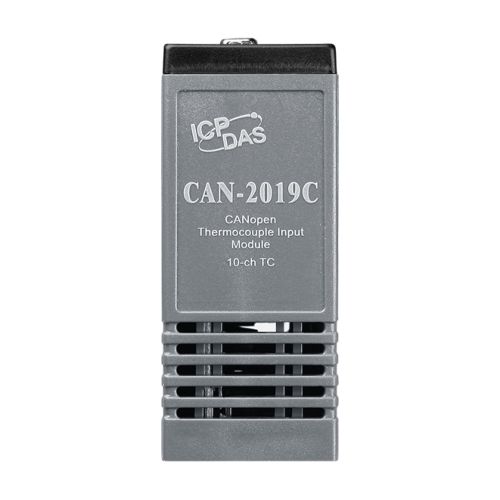

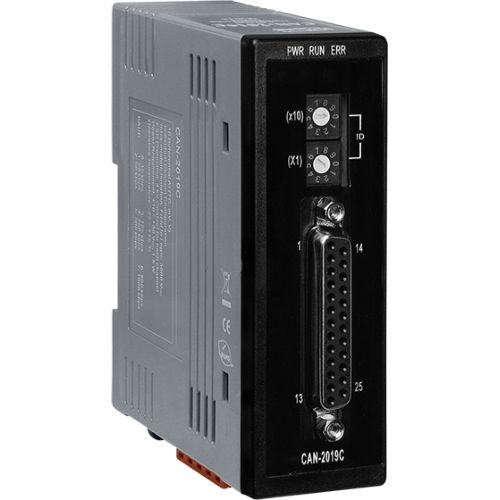

CAN-2019C/S CR ICP DAS CAN

CAN-2019C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the thermocouple input status and set the configuration by using standard CANopen protocol. CAN-2019C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. The CAN-2019C is a 10-channel universal analog input CANopen slave module with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.



Watchdog Timer: Hardware watchdog



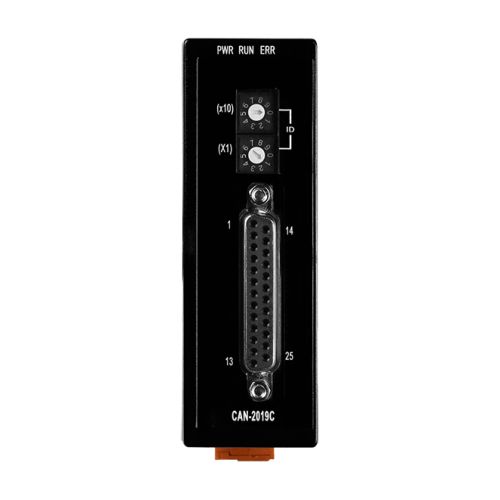

Status: 3 LEDs to PWR, RUN and ERR



Channels: 10 (Differential)

Sensor Type: +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V

+/-20mA,(Requires Optional External 125 Ohm Resistor)

Thermocouple (J, K, T, E, R, S, B, N, C)

Resolution: 16-bit

Accuracy: +/-0.1% FSR

Sampling Rate: 10 Samples/Sec. (Total)

Input Impedance: >400 kΩ

Common Mode Rejection: 86 dB Min.

Normal Mode Rejection: 100 dB

Overvoltage Protection: 240 Vrms

Individual Channel Configuration: Yes

Open Wire Detection: Yes

Zero Drift: +/- 10 μV/ °C

Span Drift: +/-25 ppm/ °C

Isolation: 3000 VDC

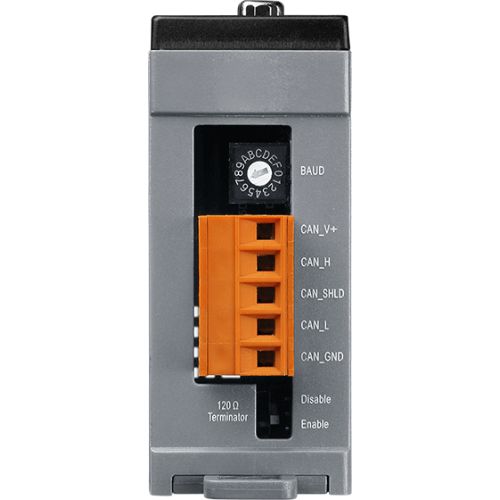

Baud Rate: 10 k ~ 1 M

Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple

Terminal Resistor: Built-in 120Ω

Protocol: CiA 301 v4.02, CiA 401 v2.1

Node ID: 1 ~ 99

No. of PDOs: 10 RxPDO , 10 TxPDO

PDO Mode: Event-triggered, remotely-requested, Cyclic and acyclic SYNC

Error Control: Node Guarding protocol / Heartbeat Producer

NMT: Slave

EMCY Message: Yes



Consumption: 1.5 W



Dimensions (mm): 33 x 99 x 78 ( W x L x H )

Installation: DIN-Rail



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
