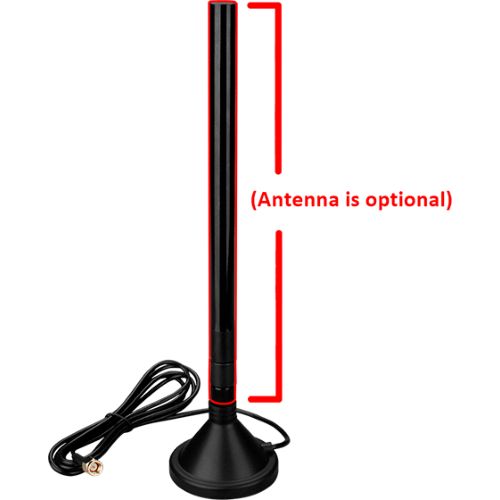

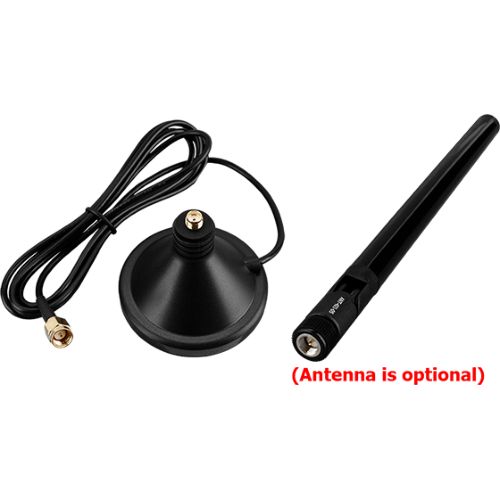

ANT-Base-01 ICP DAS Antenna

• Support 3G/4G Antenna

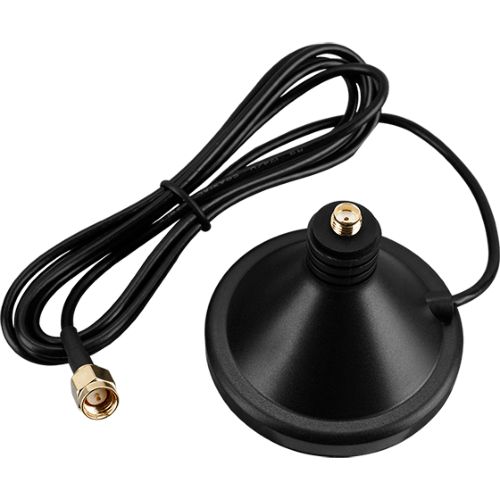

• Magnetic Disk Base
• SMA Male to SMA Female

ELECTRICAL SPECIFICATIONS

Frequency: 698 ~ 960 MHz/1710 ~ 2110 MHz/2310 ~ 2690 MHz

V.S.W.R.: 3.0 @ 698 ~ 960 MHz
 4.0 @ 1710 ~ 1800 MHz
 2.5 @ 1800 ~ 2690 MHz

Gain: 1.5 dBi @ 698 ~ 960 MHz
         4.0 dBi @ 1710 ~ 2110 MHz
         5.0 dBi @ 2110 ~ 2500 MHz
         3.5 dBi @ 2500 ~ 2690 MHz

Operating Temperature: - 30 °C ~ + 80 °C
Storage Temperature: - 30 °C ~ + 85 °C

MECHANICAL SPECIFICATIONS

Connector Type: SMA Male to SMA Female
Material of Radiator: Cu (Plated)
Material of Coaxial Cable: RG174 Cable/1500 mm
Deminsions (L x W x H): 60 mm/42 mm
