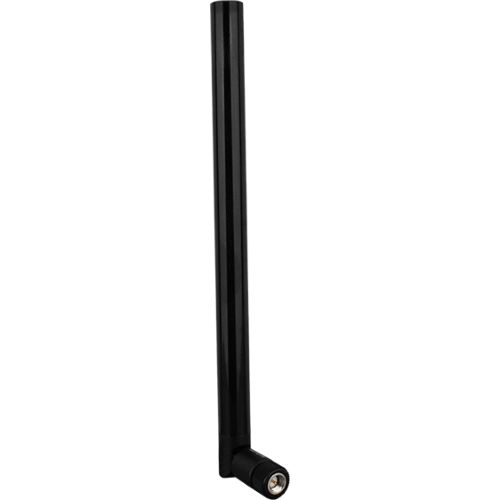

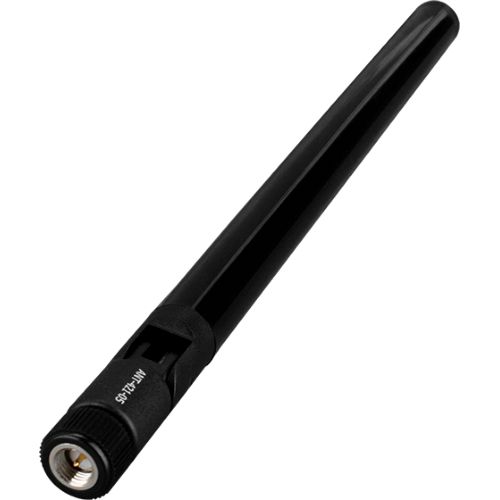

ANT-421-05 ICP DAS Antenna

• 2G GSM/GPRS Antenna (850/900/1800/1900 MHz)
• 3G WCDMA Antenna (850/1900/2100 MHz)
• 4G LTE Antenna (800/850/900/1800/2100/2600 MHz)
• SMA Male (Plug)
• Omni-Directional

ELECTRICAL SPECIFICATIONS

Frequency: 698 ~ 960 MHz/1710 ~ 2110 MHz/2310 ~ 2690 MHz

V.S.W.R.: 3.0 @ 698 ~ 960 MHz
 4.0 @ 1710 ~ 1800 MHz
 2.5 @ 1800 ~ 2690 MHz

Gain: 1.5 dBi @ 698 ~ 960 MHz
         4.0 dBi @ 1710 ~ 2110 MHz
         5.0 dBi @ 2110 ~ 2500 MHz
         3.5 dBi @ 2500 ~ 2690 MHz

Operating Temperature: - 30 °C ~ + 80 °C
Storage Temperature: - 30 °C ~ + 85 °C

MECHANICAL SPECIFICATIONS

Connector Type: SMA Male (Plug)
Material of Radiator: Cu (Plated)
Deminsions (L x W x H): 207 mm/13 mm
