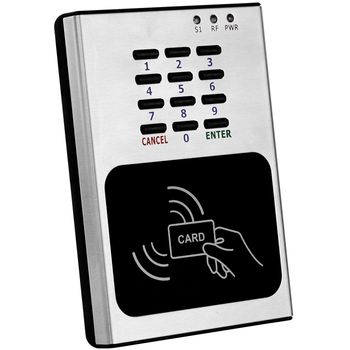

ACS-11-MF CR
Proximity Card Reader with Keypad for Access Control System (RS-485, Ethernet, CAN) (English version of voice
Access Control systems are one of the most important infrastructures for a safe, secure society. ACS-11-MF/ACS-11P-MF is an access control reader that supports keypad and RFID induction of access control. It integrates three functions of door access control, voice guidance and floor control all in one, suitable for use in community door access and elevator control. ACS-11-MF/ACS-11P-MF supports Ethernet and RS-485 communication interface and provides anti-sabotage sensor and door position detection function which can consolidate the security of access control systems and effectively enhance the service quality of management.
ACS-11-MF CR: Access Control Reader with Proximity Card and Keypad (English version of voice) (RoHS)
- Supports Keypad and RFID induction control
- Supports Card Type: Mifare Classic, Ultralight, DESFire
- Built-in Voice Message Function
- Supports Ethernet/RS-485/CAN Bus Interface
- Built-in RTC and WDT
- Electric Door Lock Control and Door Position Detection
- Provides Access Records
- Max Card Capacity:8192 Cards
- Supports Elevator Floor Control (Max. 16 F)
CAN Bus
Baud rate (bps): 1M
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
UART
COM: RS-485 (D+, D-)
Baud rate (bps): 9600
Format: N, 8, 1
Ethernet
Controller: 10/100 Base-TX Ethernet Controller (Auto-negotiating, Auto MDIX)
Connector: RJ-45 with LED indicator
PoE: -
Digital Input
Channels: 4
Input Type: Dry contact (Source), Wet Contact (Sink, Source)
Relay Output
Channels: 2
Output Type: Form C
Contact Capacity: 0.5 A @ 125 VAC
Micro Switch
Channels: 1
Circuit arrangement: SPDT
Contact Rating: 6 A 125 / 250 VAC
RFID
Supported Card: Mifare Classic, Ultralight, DESFire
Standard: ISO 14443 A
Keypad
Supported: Yes
Power
Reverse Polarity Protection: Yes
Powered from CN1 Connector: 10 V ~ 30 V
Powered from PoE: -
Power consumption: 2.0 W
Mechanical
Installation: Wall Mounting (Suitable for the outlet box in United States)
Dimensions: 83 mm x 120 mm x 28 mm (W x L x H)
Environment
Operating Temperature: -20℃ ~ +60℃
Storage Temperature: -30℃ ~ +80℃
Humidity: 10% ~ 90% RH, non-condensing
