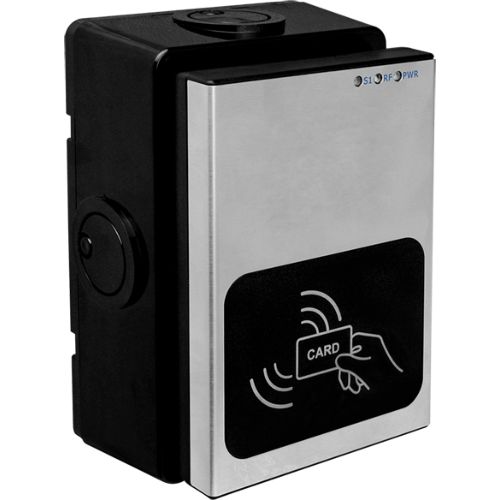

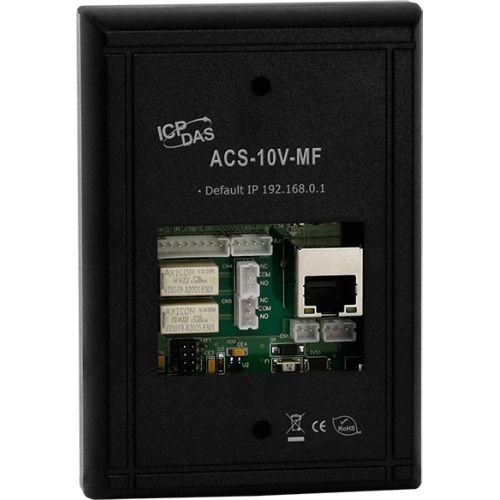

ACS-10V-MF CR, Proximity Card Reader for Access Control System (RS-485, Ethernet, CAN) (English version of voice)
ACS-10V-MF CR
Proximity Card Reader for Access Control System (RS-485, Ethernet, CAN) (English version of voice)
Free Shipping
Features
- Supports RFID induction control.
- Supports Card Type: Mifare Classic, Ultralight, DESFire.
- Built-in Voice Message Function.
- Supports Ethernet/RS-485 Interface.
- Built-in RTC and WDT.
- Electric Door Lock Control and Door Position Detection.
- Provides Access Records.
- Max Card Capacity：8192 Cards.
- Supports Elevator Floor Control (Max. 16 F).
Introduction
Access Control systems are one of the most important infrastructures for a safe, secure society. ACS-10V-MF/ACS-10VP-MF is an access control reader that supports RFID induction of access control. It integrates three functions of door access control, voice guidance and floor control all in one, suitable for use in community door access and elevator control. ACS-10V-MF/ACS-10VP-MF supports Ethernet and RS-485 communication interface and provides anti-sabotage sensor and door position detection function which can consolidate the security of access control systems and effectively enhance the service quality of management.
Specifications
Keypad
Supported: No
System
Micro Switch: Channel x 1, SPDT, 6A @125/250 VAC, for anti-sabotage detection
RFID
Standard: ISO 14443 A
Supported Card: Mifare Classic, Ultralight, DESFire
Digital Input
Channels: 4
Type: Dry contact (Source), Wet Contact (Sink, Source)
Relay Output
Channels: 2
Type: Form C
Contact Rating: 2A@30VDC,
0.5A@120VAC
COM Ports
Ports: 1 x RS-485 (D+, D-)
Baud Rate: 9600
Data Format: N, 8, 1
Ethernet
Ports: 1 x RJ-45, 10/100Base-T(X)
CAN
Baud Rate: 1M
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Power
Reverse Polarity Protection: Yes
Consumption: 2.0 W
Mechanical
Dimensions (mm): 83 x 120x 28 (W x L x H)
Installation: Wall Mounting (Suitable for the outlet box in United States)
Environment
Operating Temperature: -20℃ ~ +60℃
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
