features and benefits

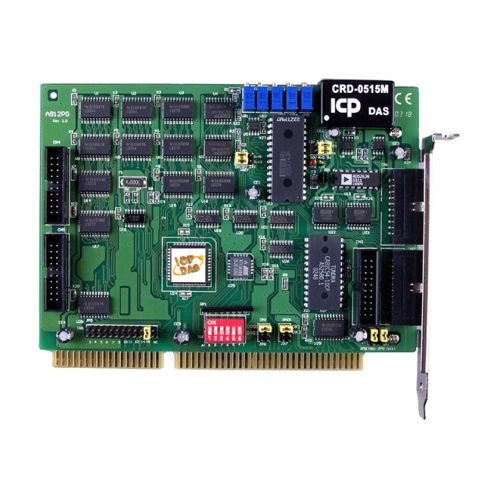

The A-812PG is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer.
The A-812PG offer 16 single-ended plus two channels of AO with 12-bit resolution.
In addition, The A-812PG has 16 DI, 16 DO , and one timer/counter channel.
The A-812PG Provides gain of 1, 2, 4 , 8 , 16.
It has a maximum sampling rate of 62.5 k Samples/Sec., DMA operation is jumper selectable for levels 1 or 3.
Interrupts are jumper selectable between 3 and 15. ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version.
Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).
- 12-bit A/D converter
- 12-bit D/A converter
- 16 single-ended
- 62.5 k/s sampling rate
- Two 12-bit AO channels
- AO Range : 0 ~ 5 V , 0 ~ 10 V
- Software programmable gain :1, 2, 4, 8, 16
- Interrupt handling
- A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
- A/D data transfer modes : polling , interrupt , DMA
- 16 DI & 16 DO
specifications
Hardware| Connector | 20-pin box header x 5 |
|---|
Analog Input| Channels | 16 single-ended |
|---|
| Range | ± 10 V, ± 5 V, ± 2.5 V, ± 1.25 V, ± 0.625 V, ± 0.3125 V |
|---|
| Resolution | 12-bit |
|---|
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
|---|
| Sampling Rate | 62.5 kS/s. Max. |
|---|
| Overvoltage Protection | Continuous ±35 Vp-p |
|---|
| Zero Drift | 25 ppm/°C of FSR |
|---|
| Trigger Mode | Software, Pacer, External |
|---|
| Data Transfer | Polling, Interrupt(DMA) |
|---|
Analog Output| Channels | 2 |
|---|
| Range | 0 ~ 10 V, 0 ~ 5 V, 0 ~ Ext Ref |
|---|
| Resolution | 12-bit |
|---|
| Accuracy | ±6 LSB |
|---|
| Response Time | 1 MHz (Typical) |
|---|
| Voltage Output Capability | ±5 mA |
|---|
| Slew Rate | 0.6 us to 0.01% for full scale step |
|---|
| Operation Mode | Static Update |
|---|
Digital Input| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| ON Voltage Level | 2.0 V Min. |
|---|
| OFF Voltage Level | 0.8 V Max. |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
| Trigger Mode | Static Update |
|---|
Digital Output| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| Operation Mode | Static Update |
|---|
| Load Voltage | Logic 0: 0.4 V Max. | Logic 1: 2.4 V Min. |
|---|
| Load Current | Sink: 8 mA | Source: 0.4 mA |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
PC Bus| Type | ISA |
|---|
| Data Bus | 8-bit |
|---|
Power| Consumption | 960 mA @ +5 V |
|---|
Mechanical| Dimensions (mm) | 124 X 463 X 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
